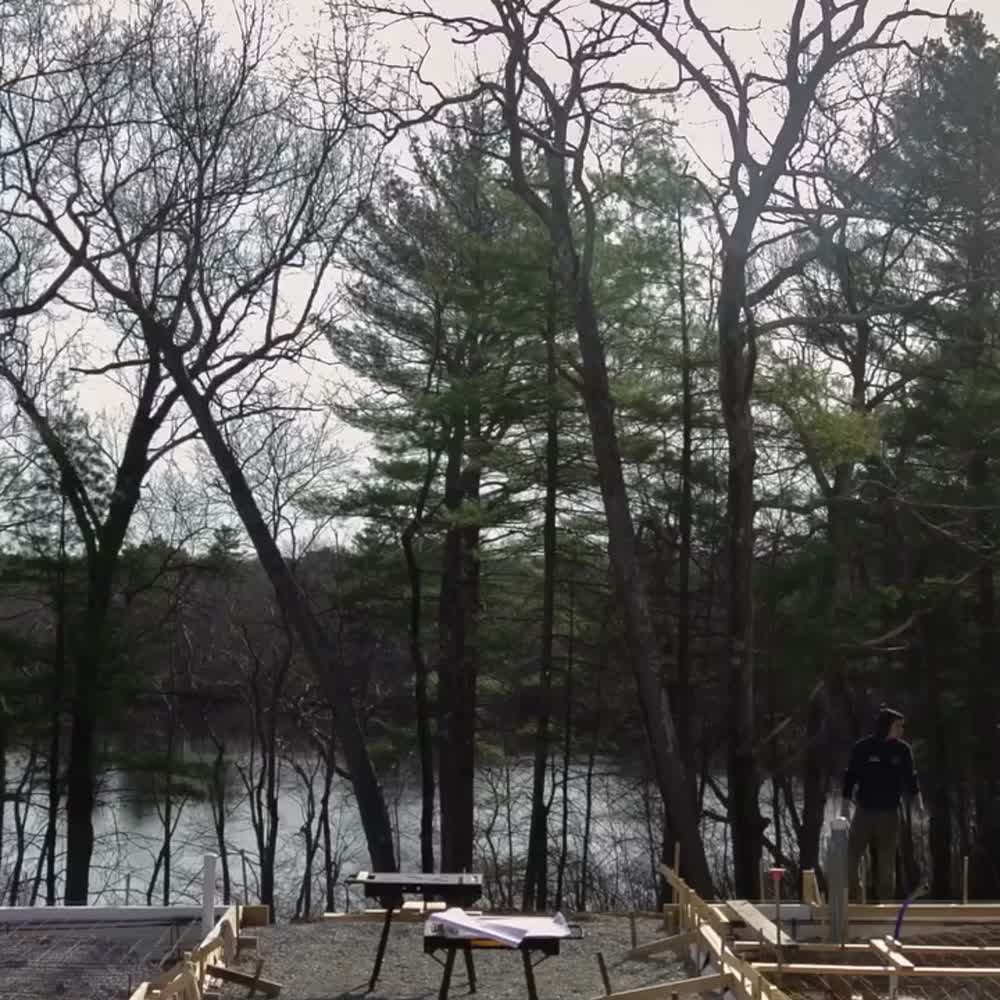

NS Builders documented the construction of Echo Pond in public, from the first cut of the access road to the finished rooms. Motif Media filmed and photographed the work throughout. This page gathers that record in the order the house was built, followed by a few moments from the place itself.

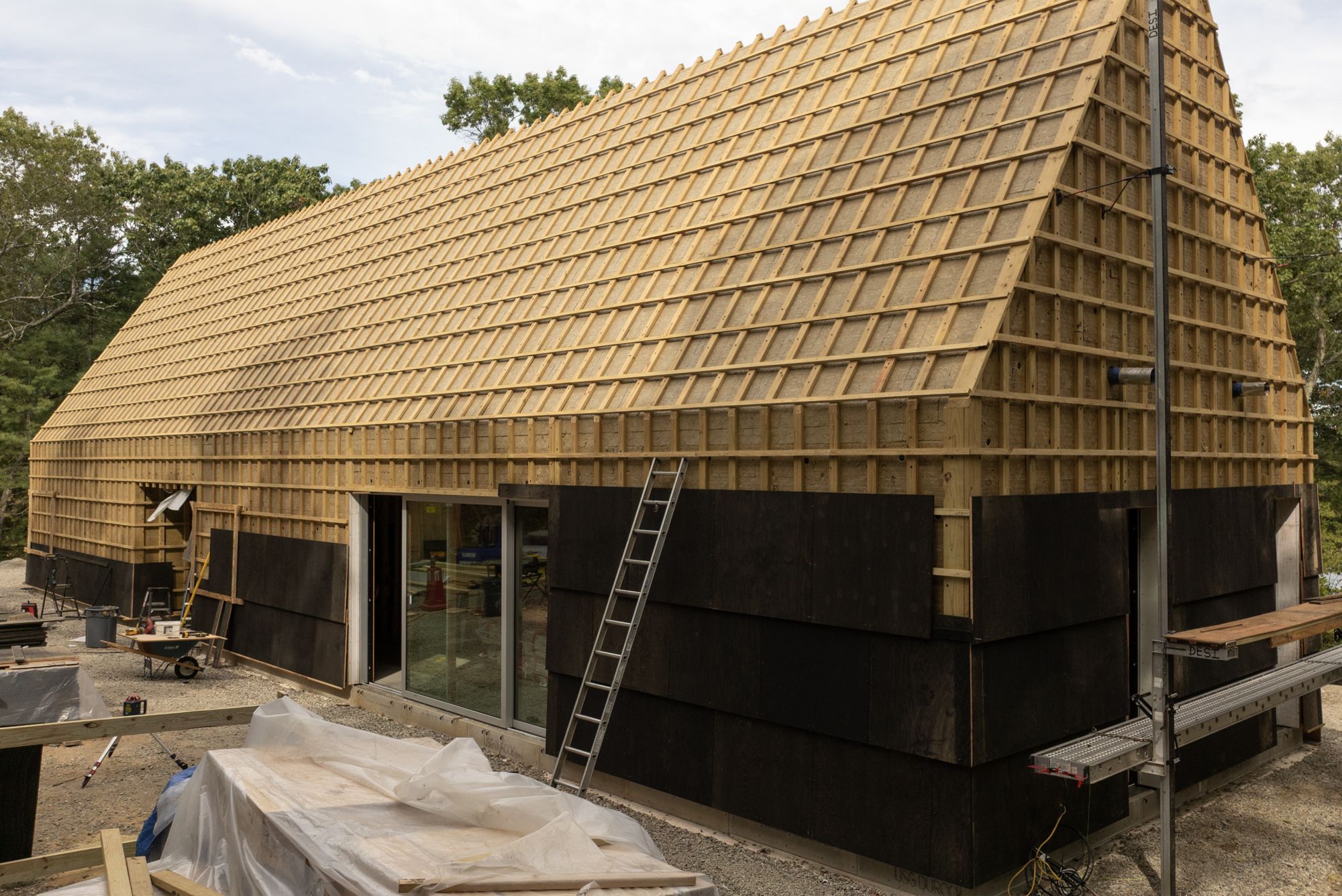

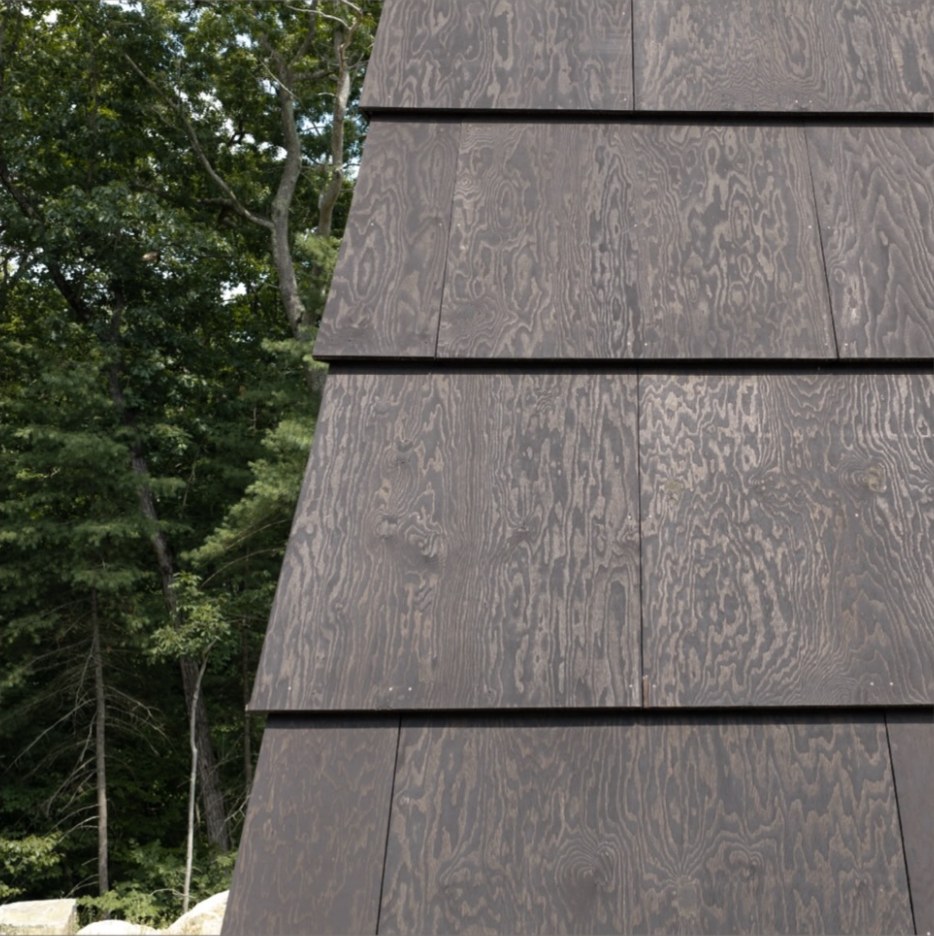

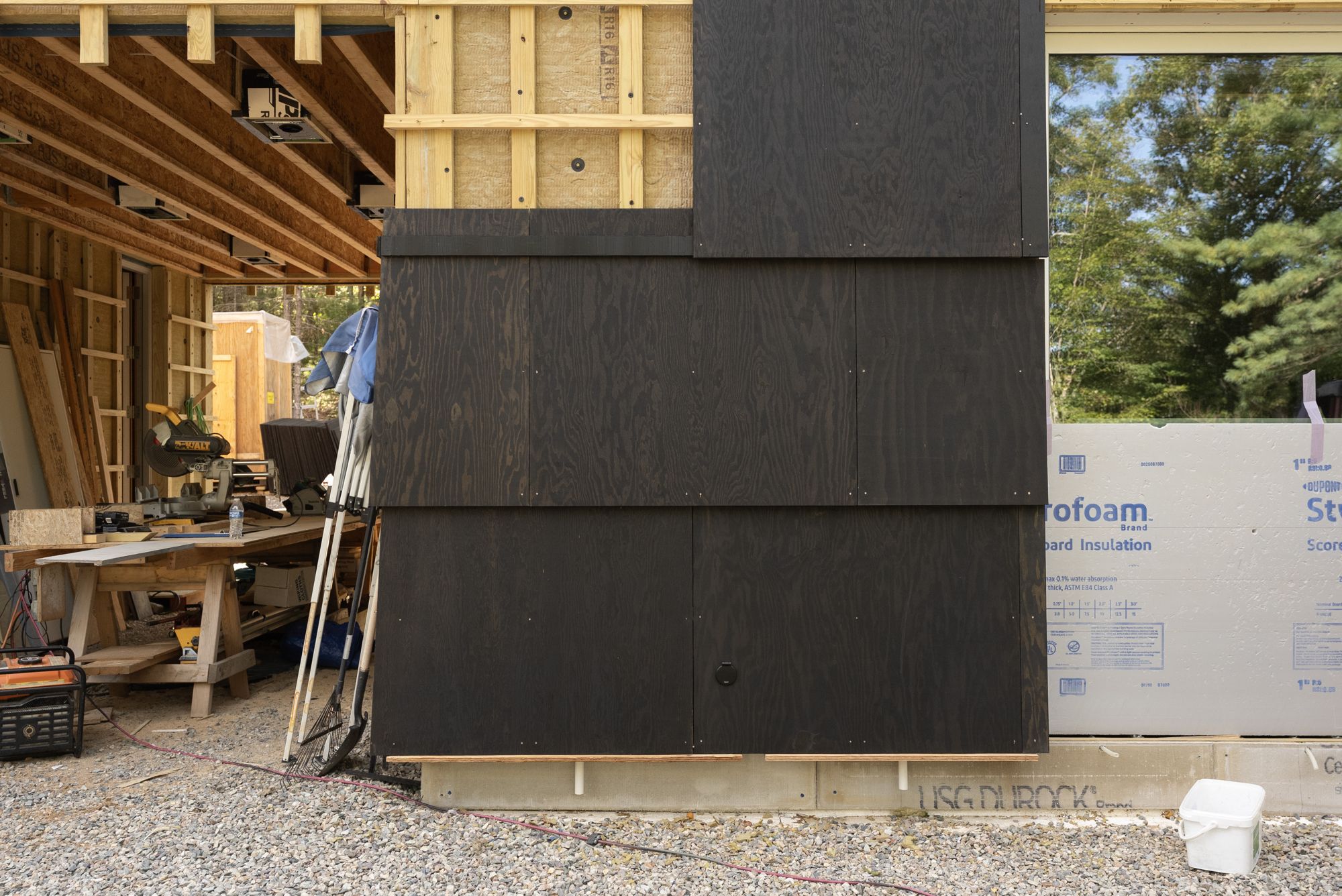

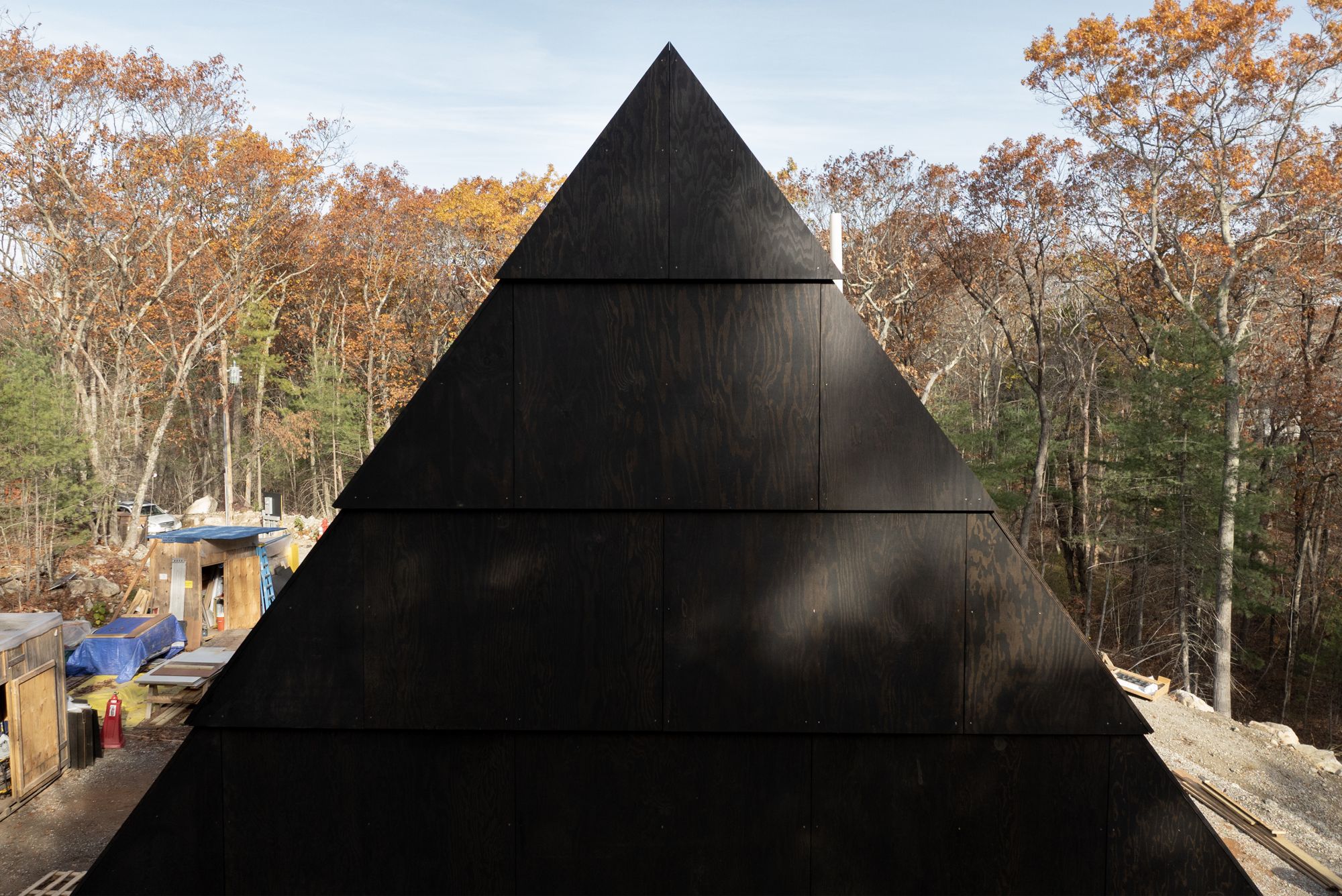

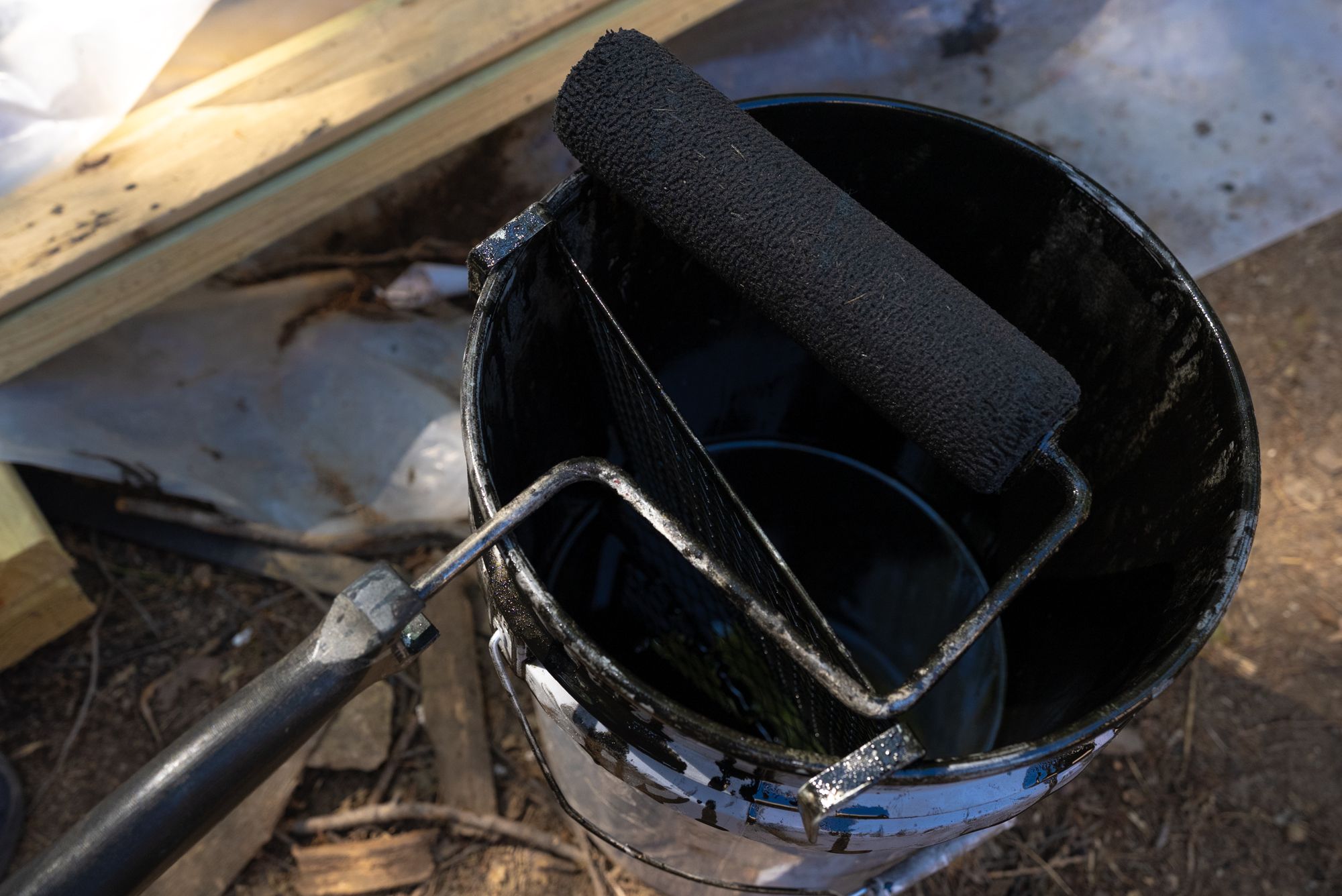

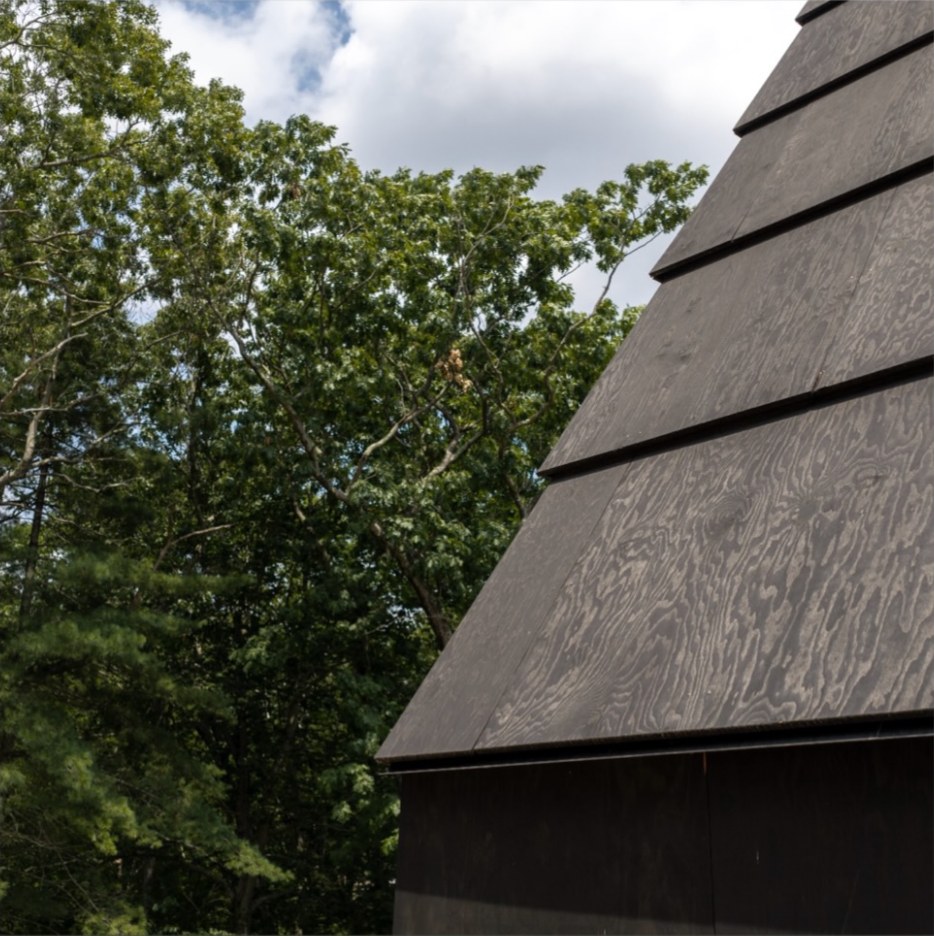

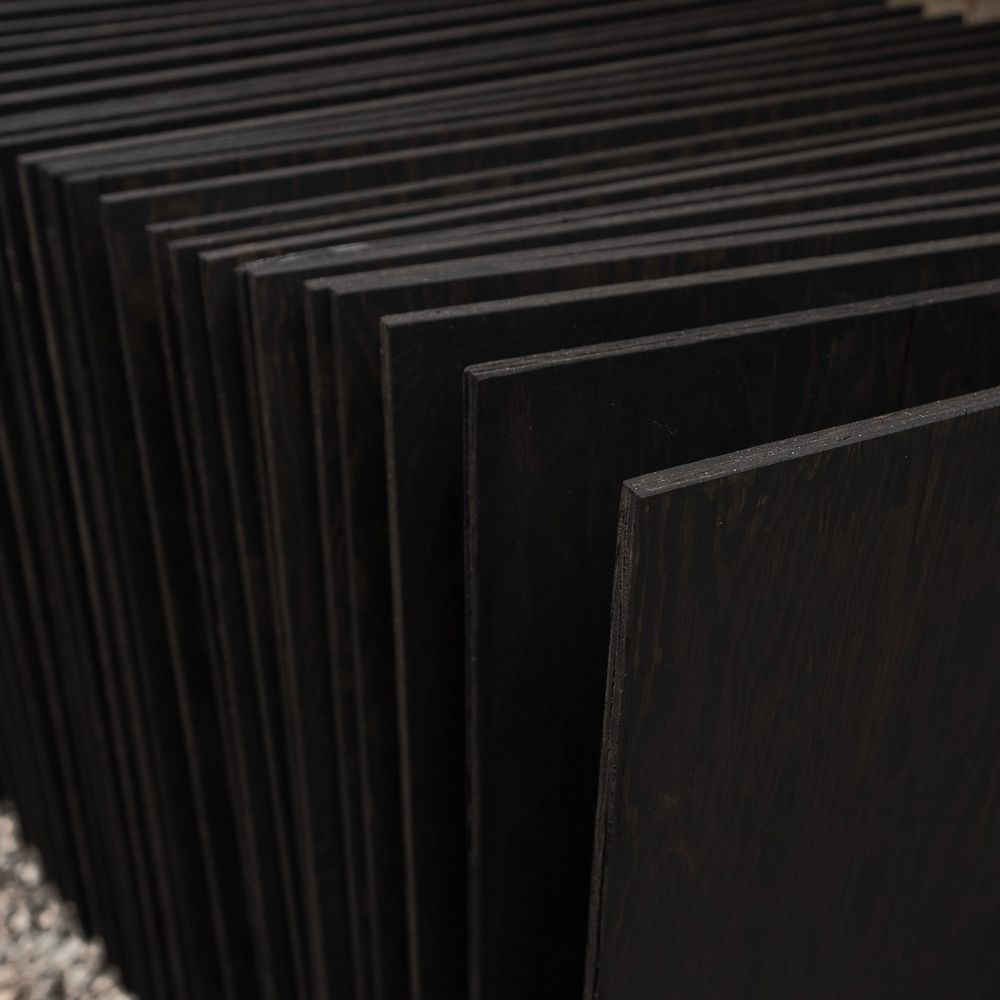

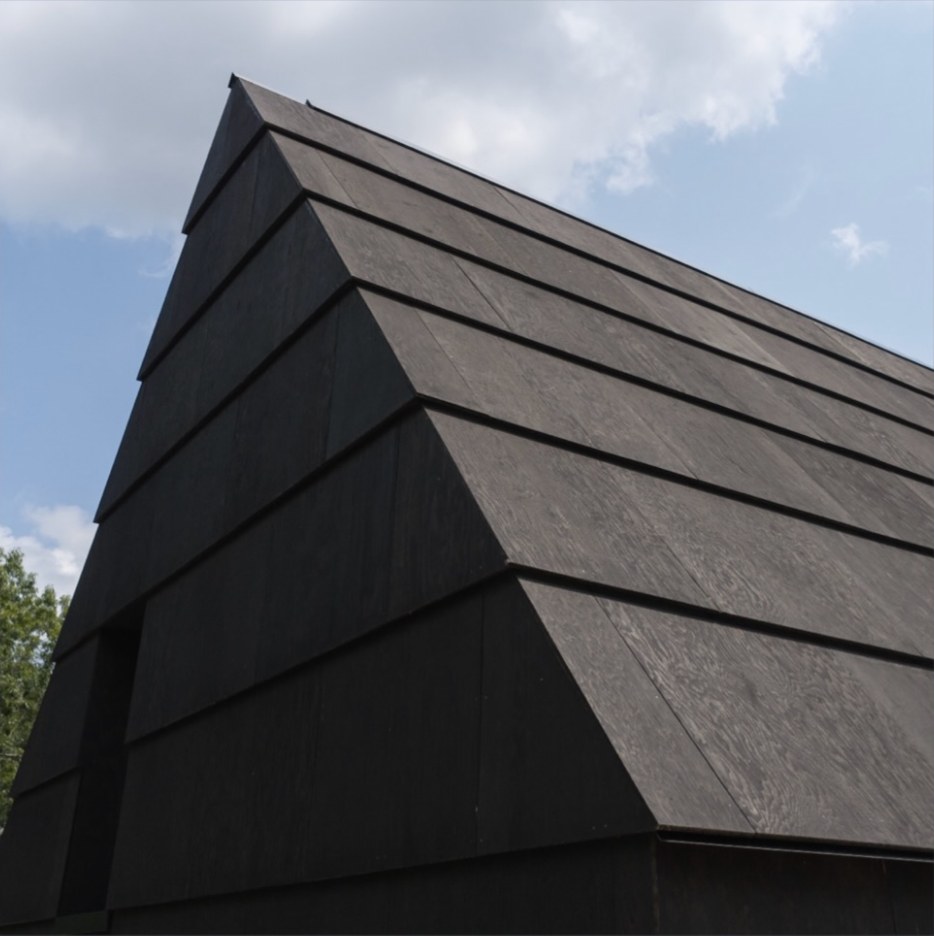

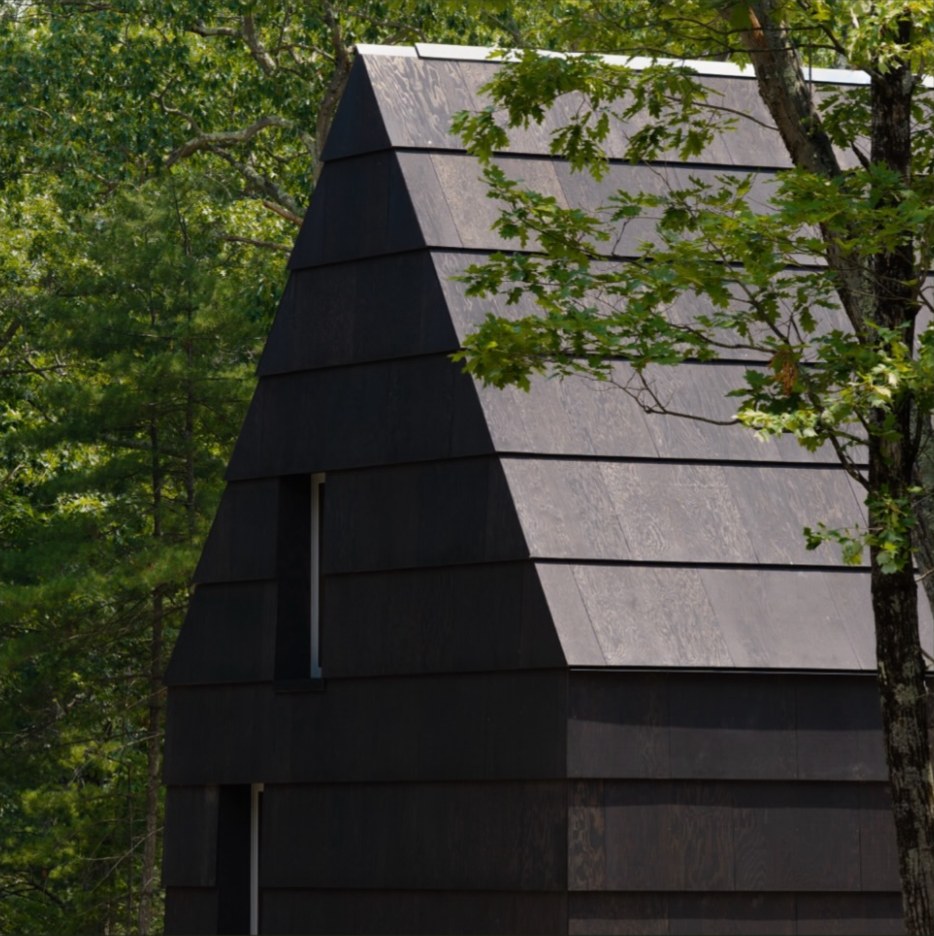

Vincent Appel and Nick Schiffer on the house-shaped house and its megashingle, a plywood shingle made from a four-by-eight sheet cut in half: why it is that size, how the pine tar finish was developed, and how the corners were resolved.
Photo by Motif Media
Building Echo Pond

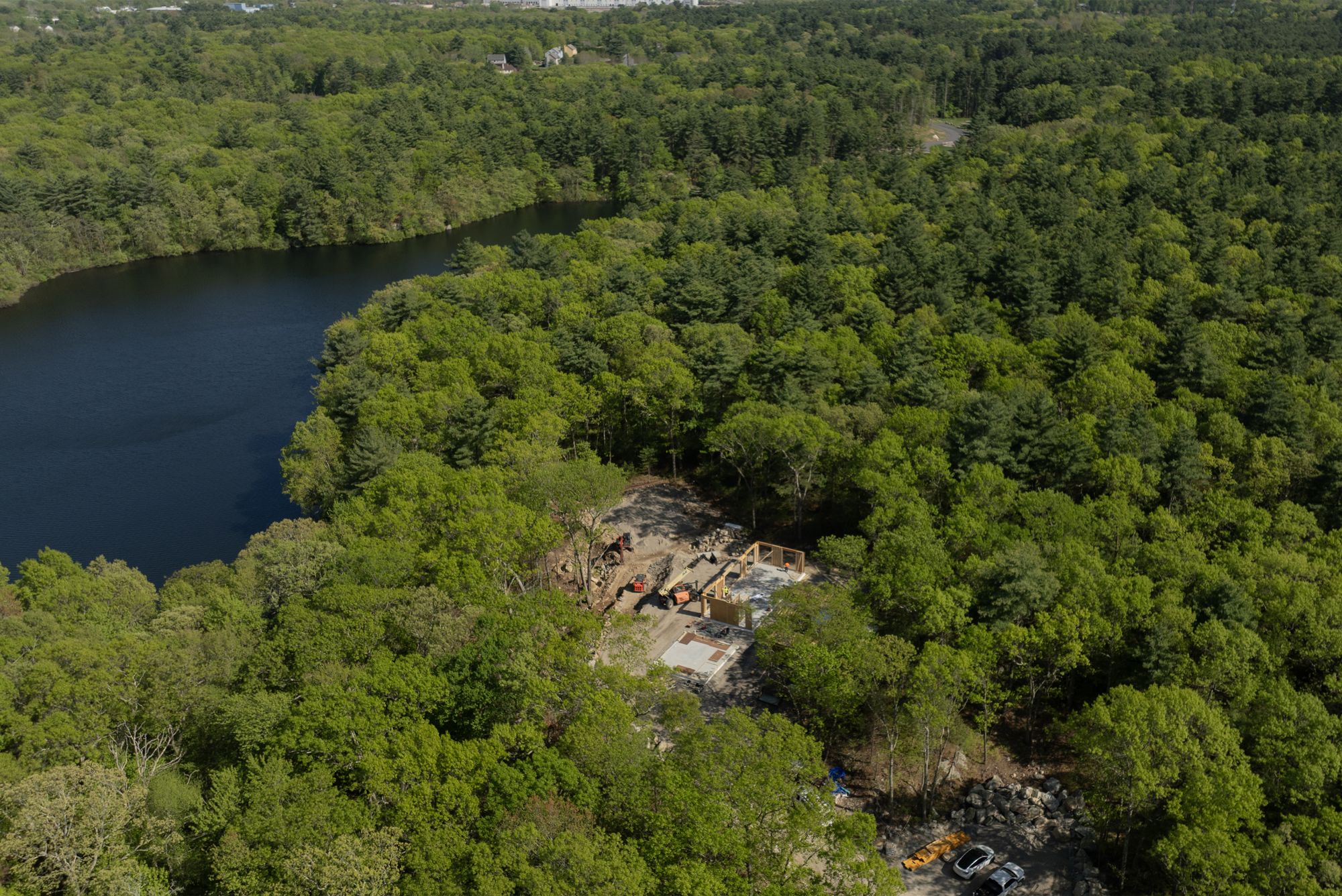

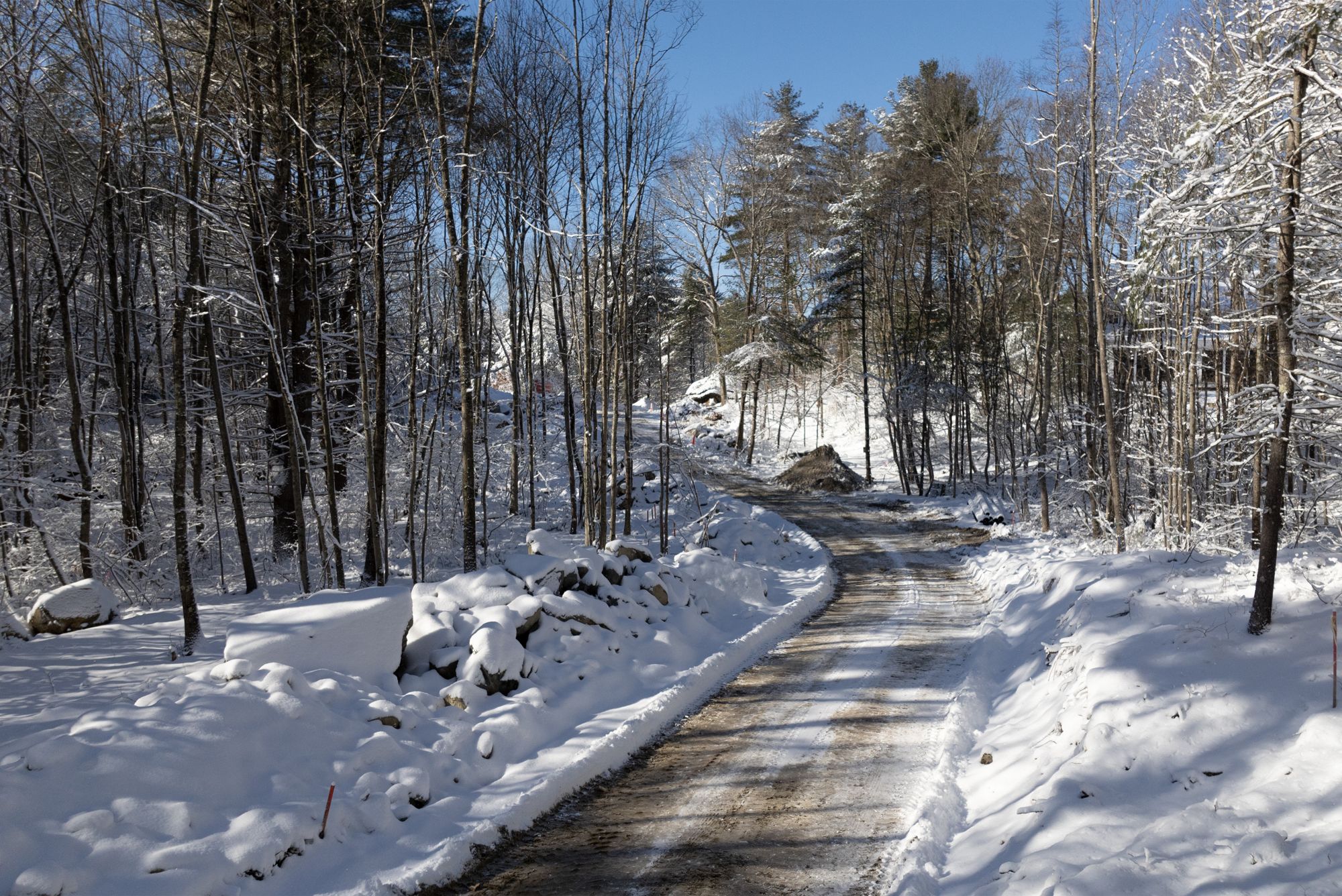

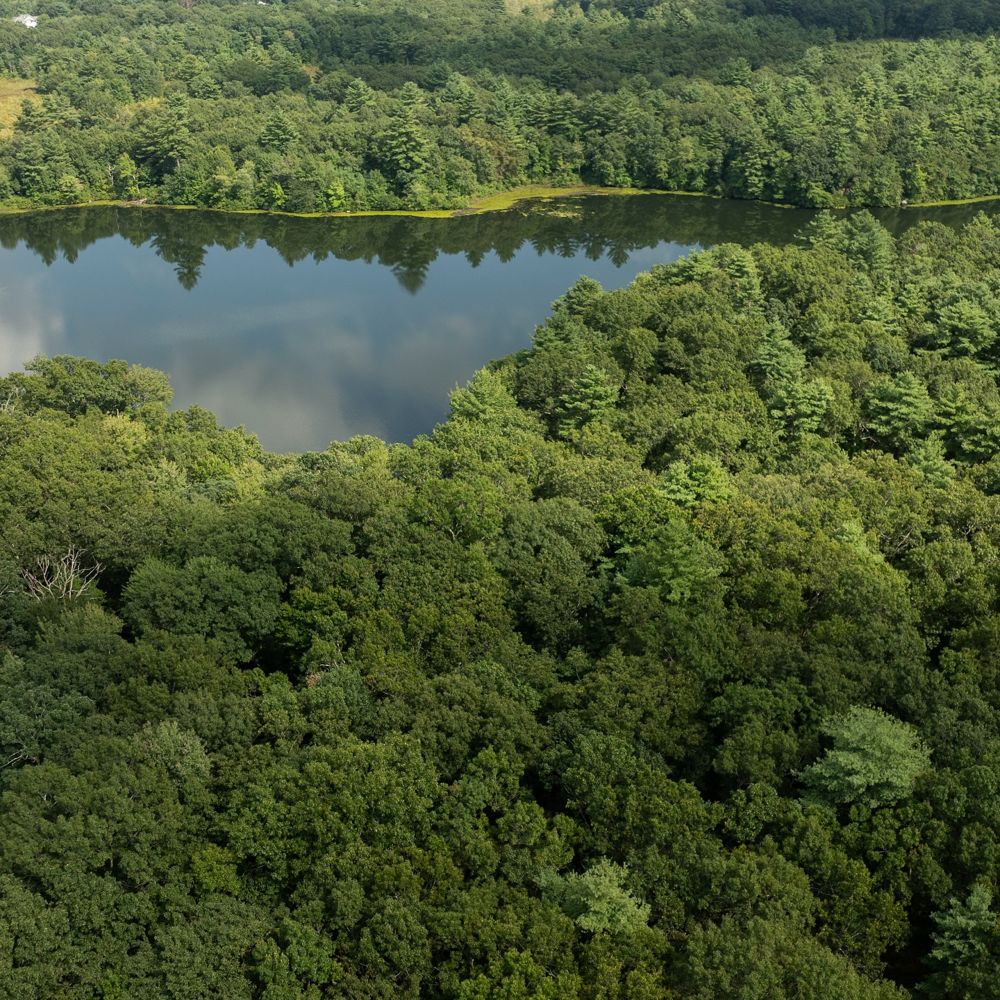

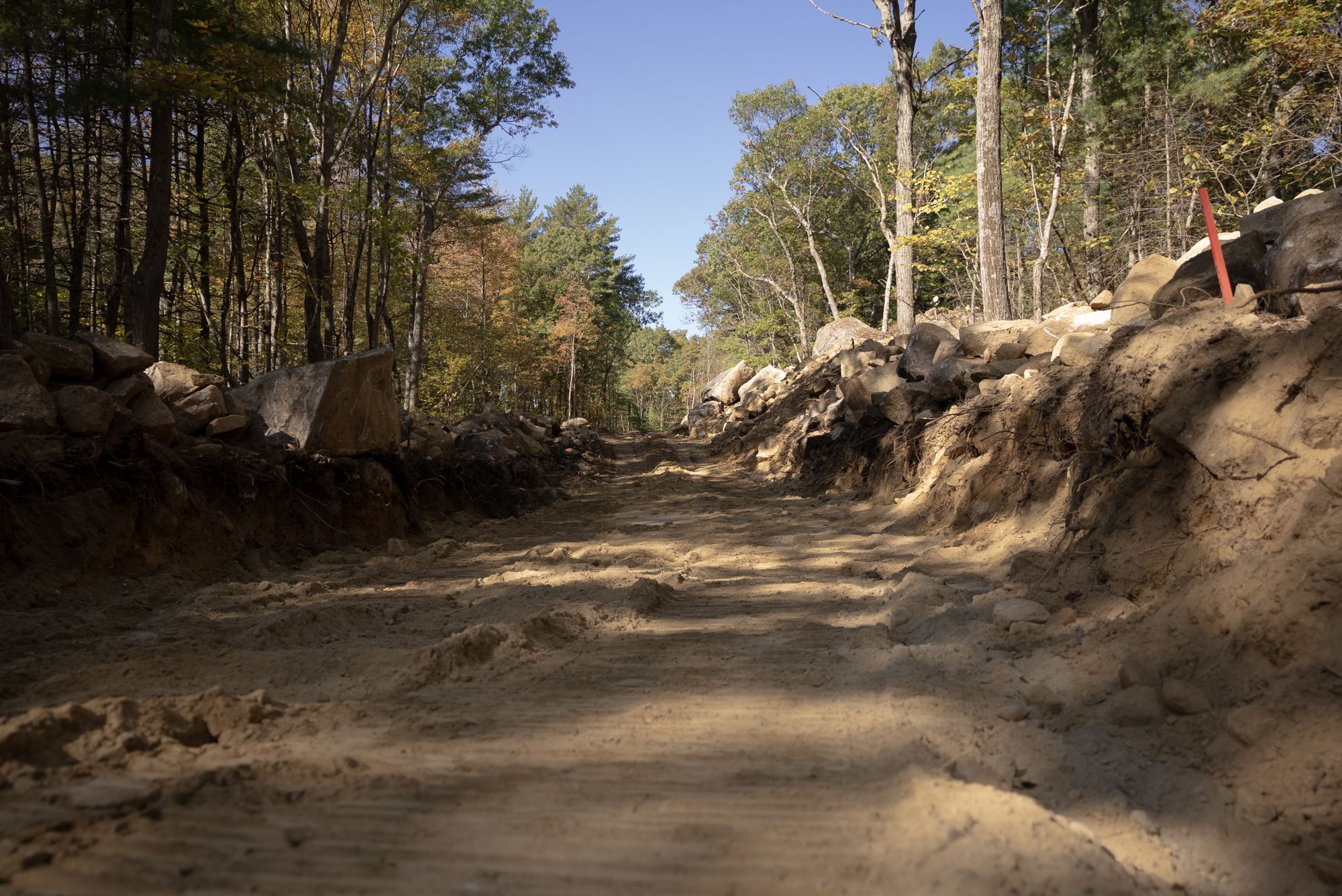

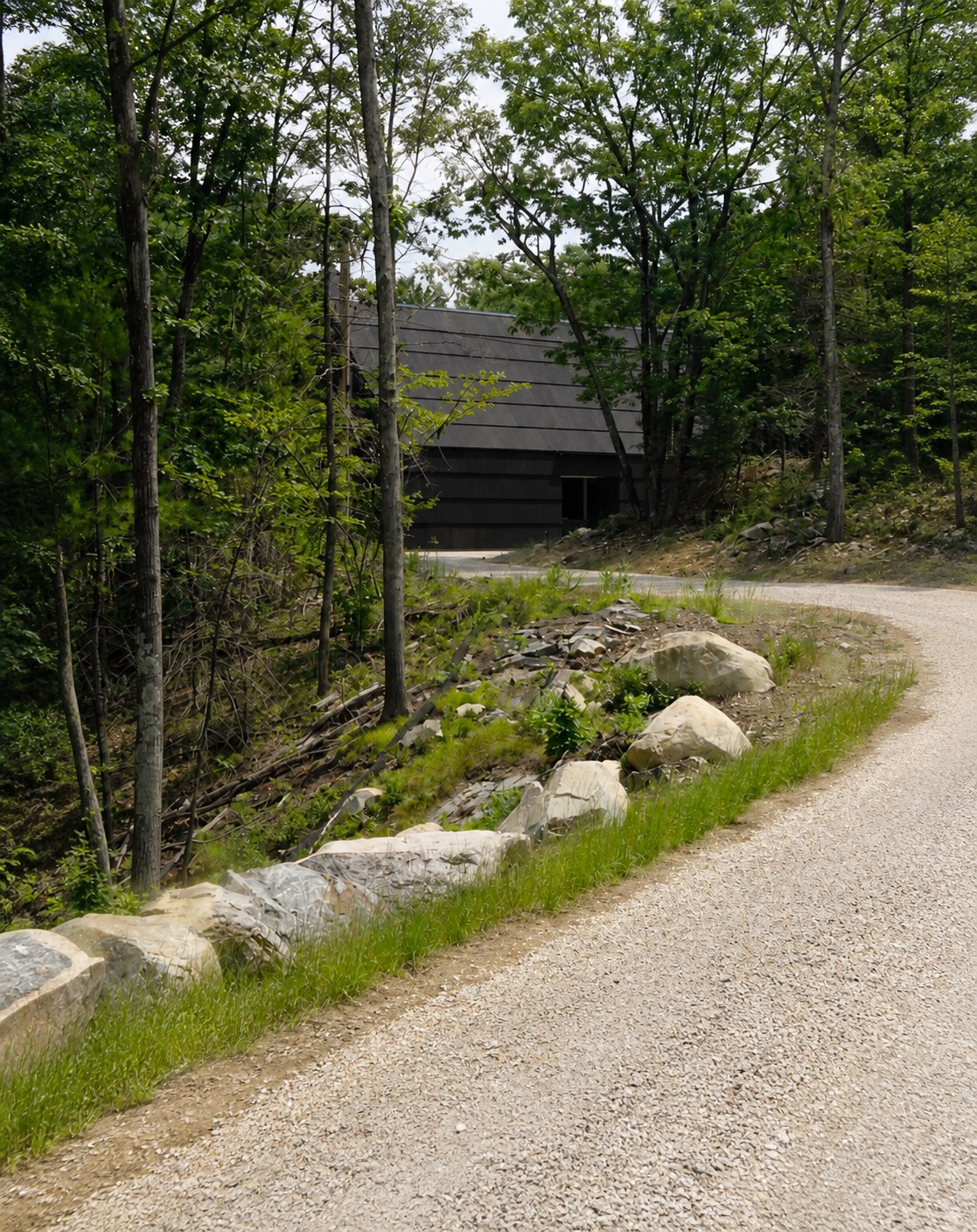

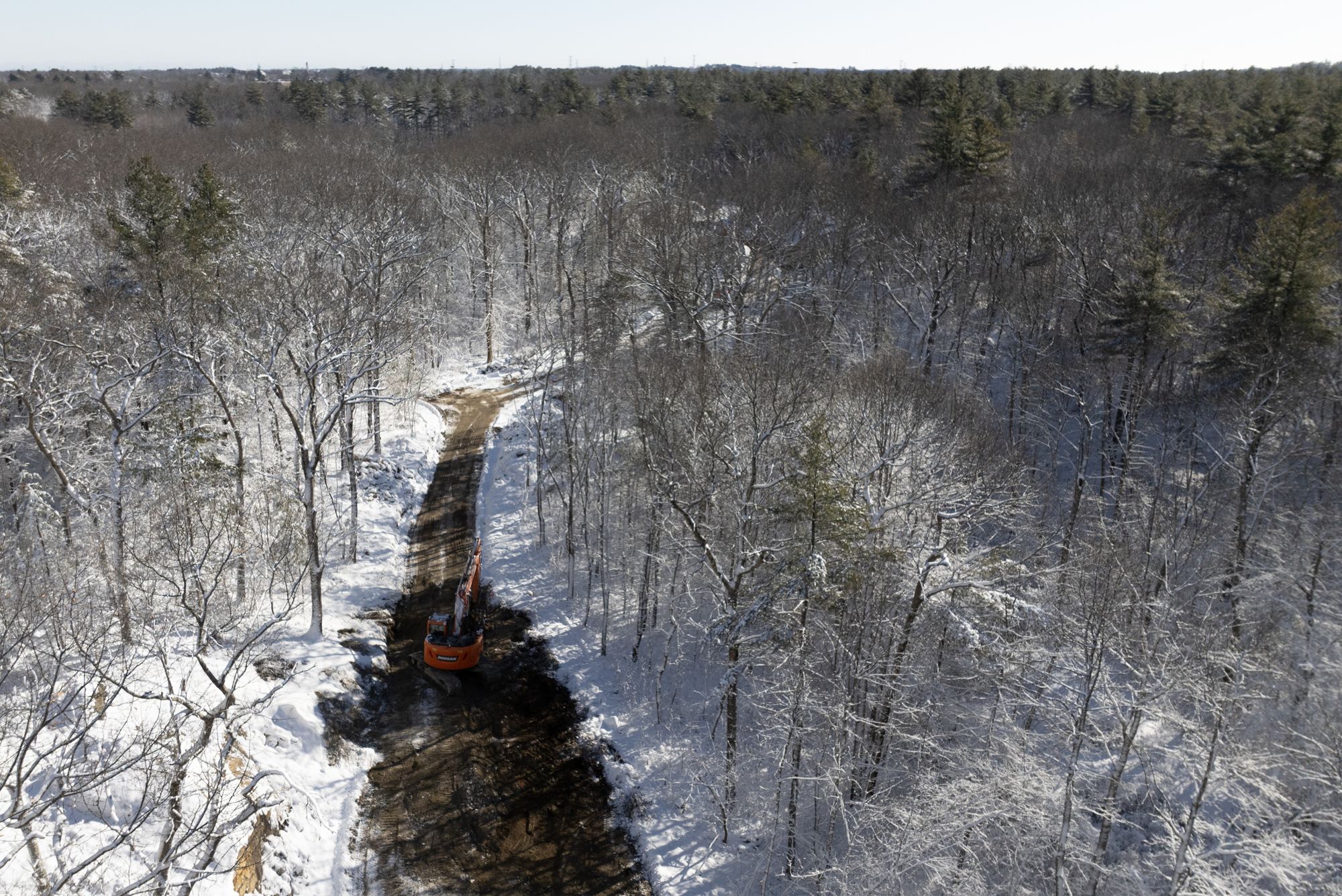

Before the house, a road: 1,400 feet through forest and ledge, a culvert across the wetland, a water line to a new hydrant, and at the end the first view of the pond from the house site.
Photo by Motif Media

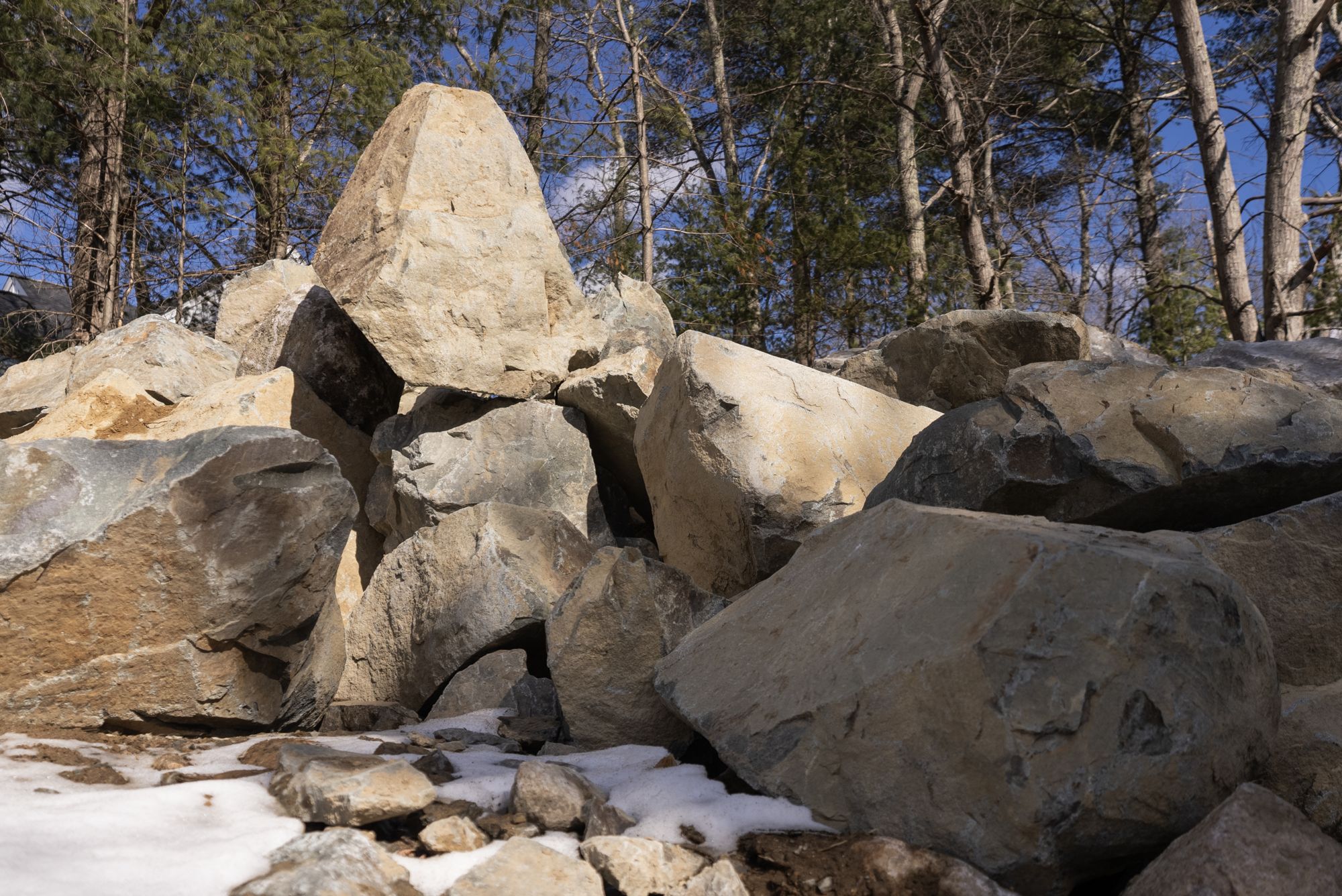

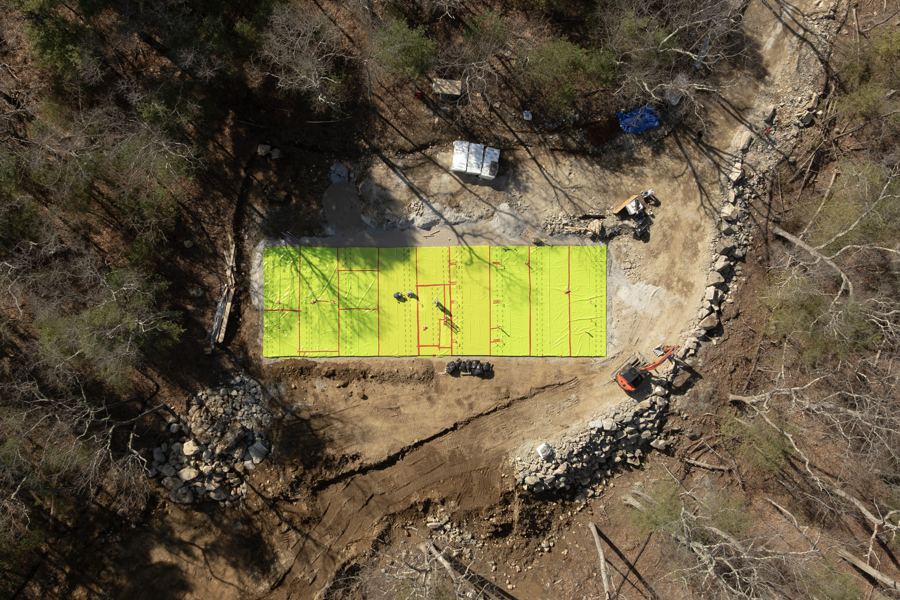

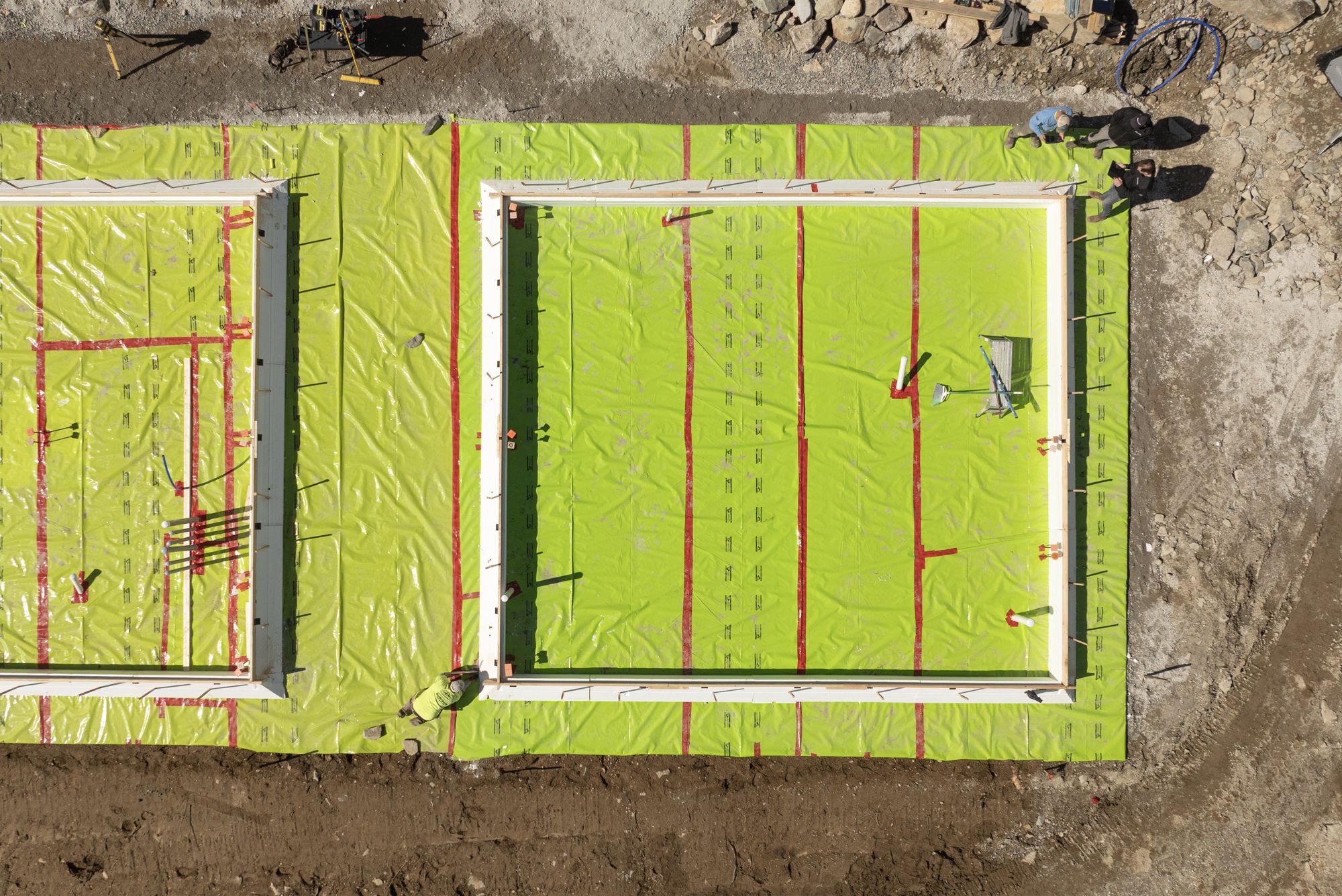

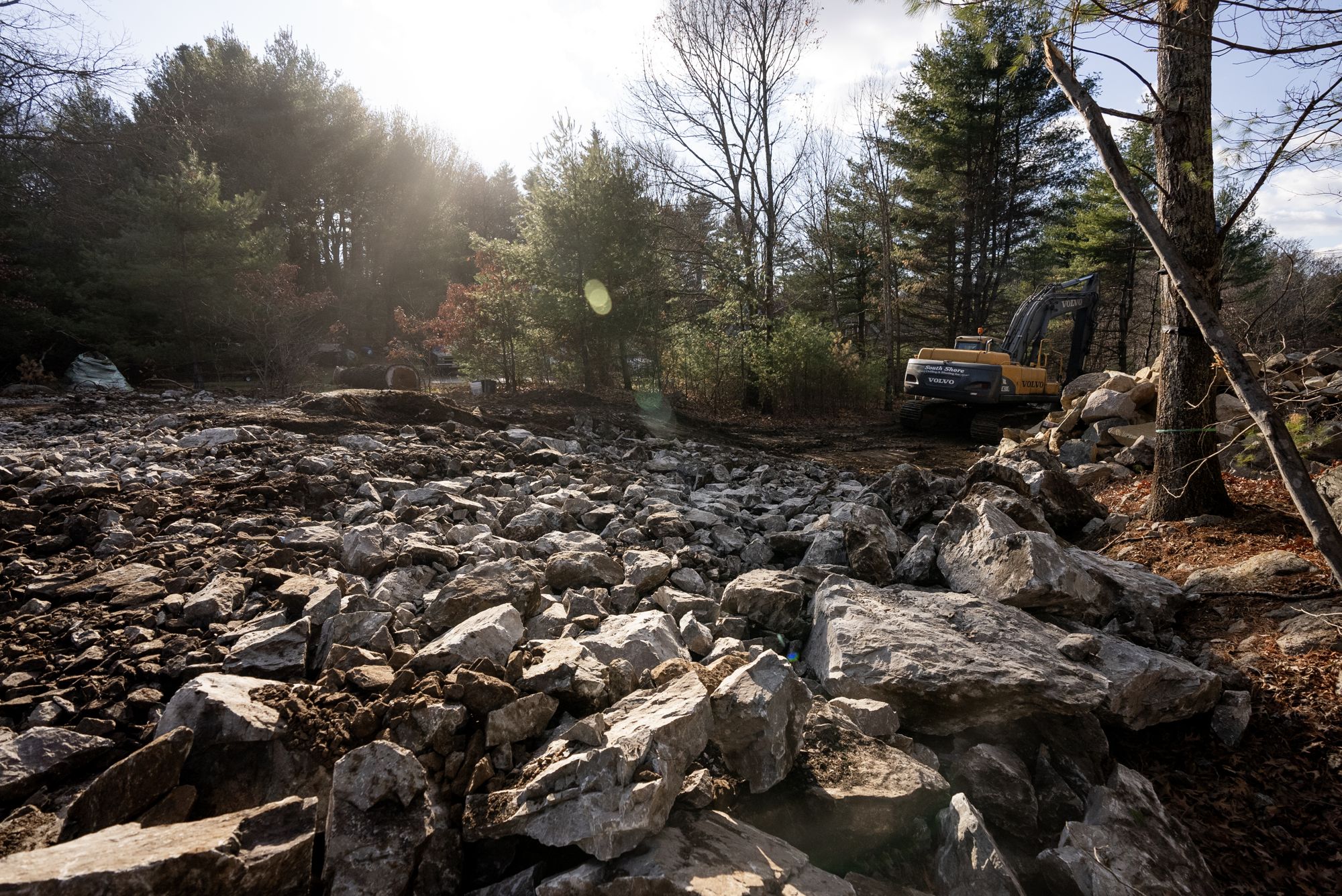

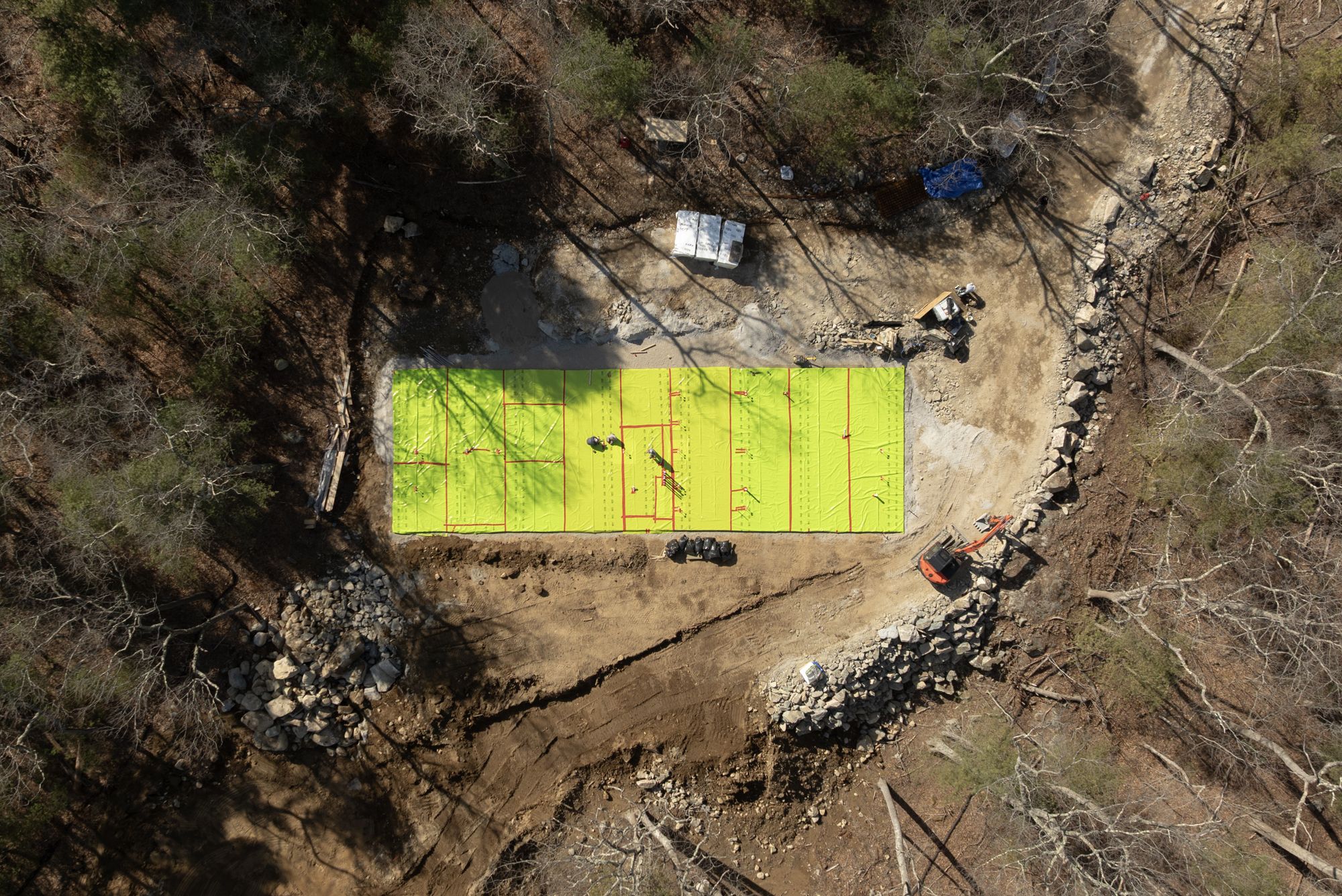

A quarter mile into the woods, the blasted ledge is backfilled and compacted in lifts, and the site is prepared for a slab that sits on insulation.
Photo by Motif Media

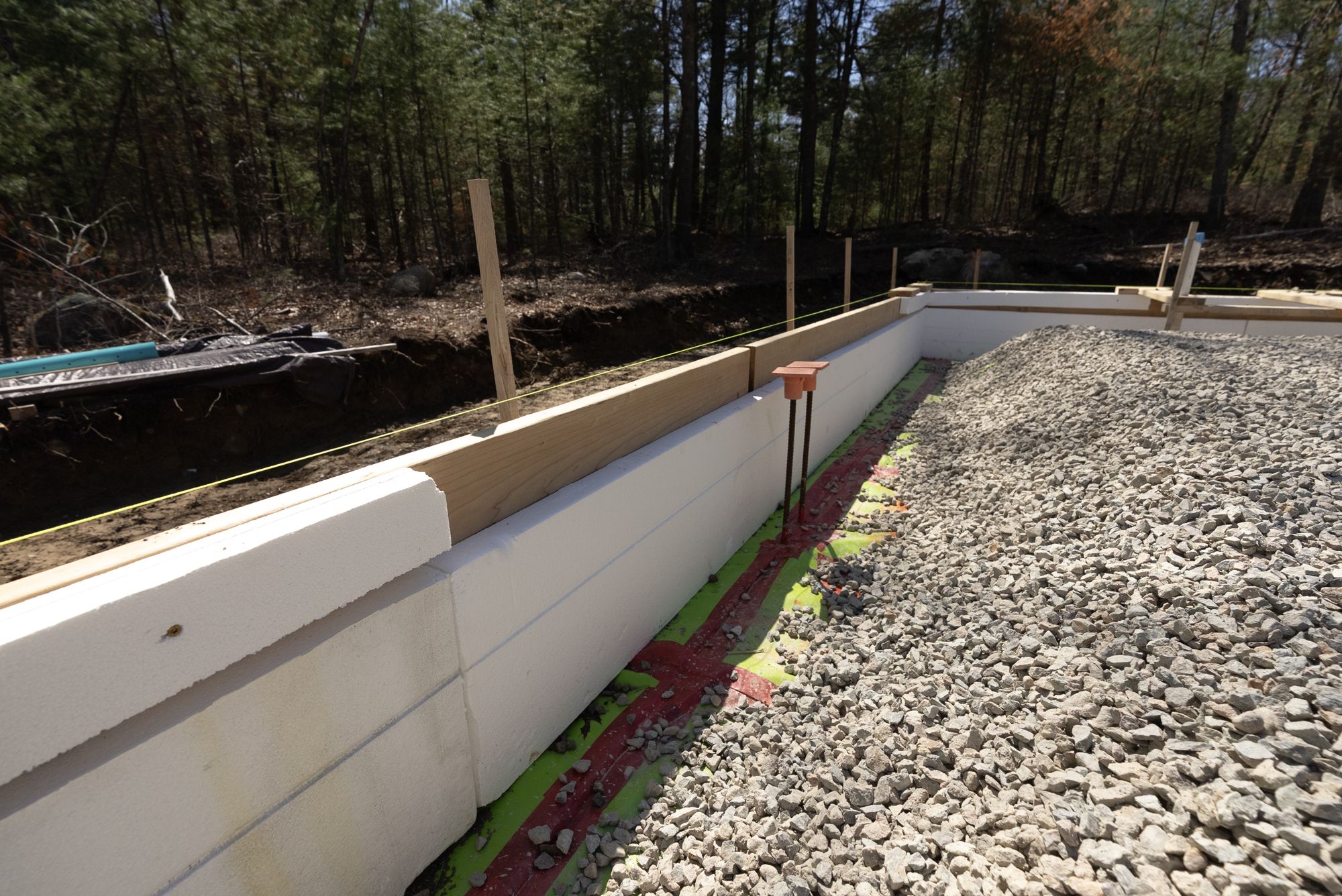

Nick Schiffer and Vincent Appel explain the frost-protected shallow foundation: a raft of concrete insulated horizontally, in place of walls carried four feet below grade.
Photo by Motif Media

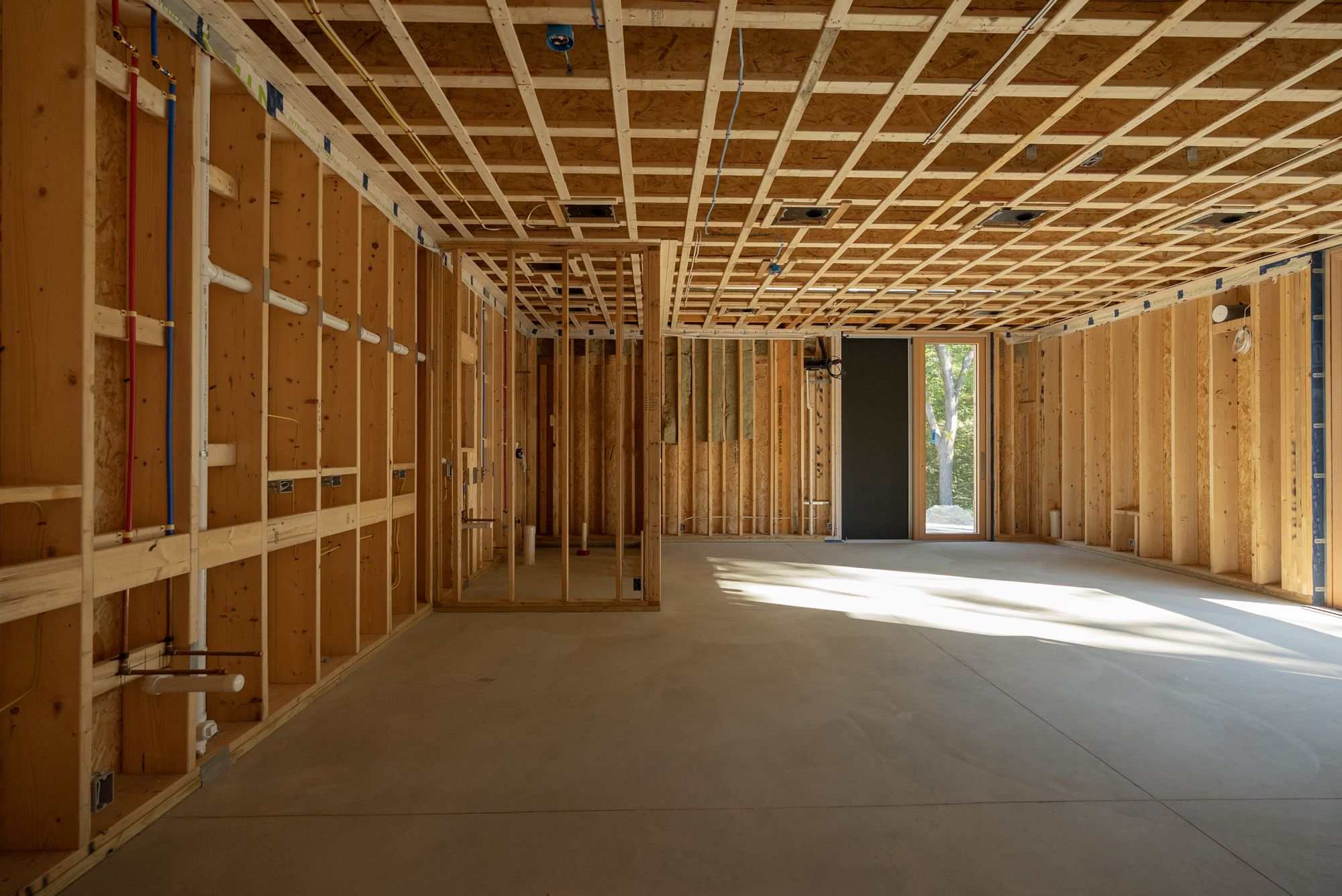

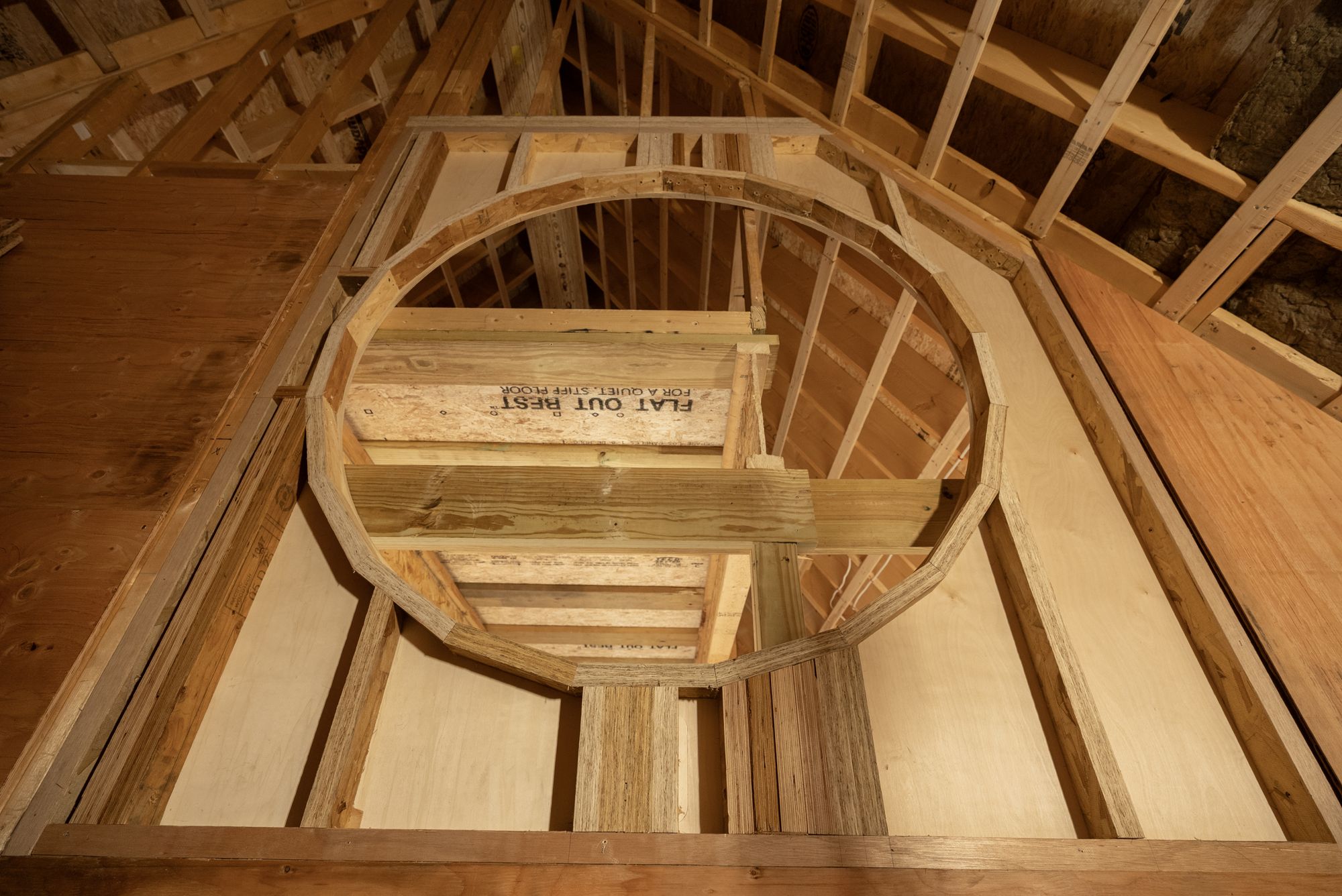

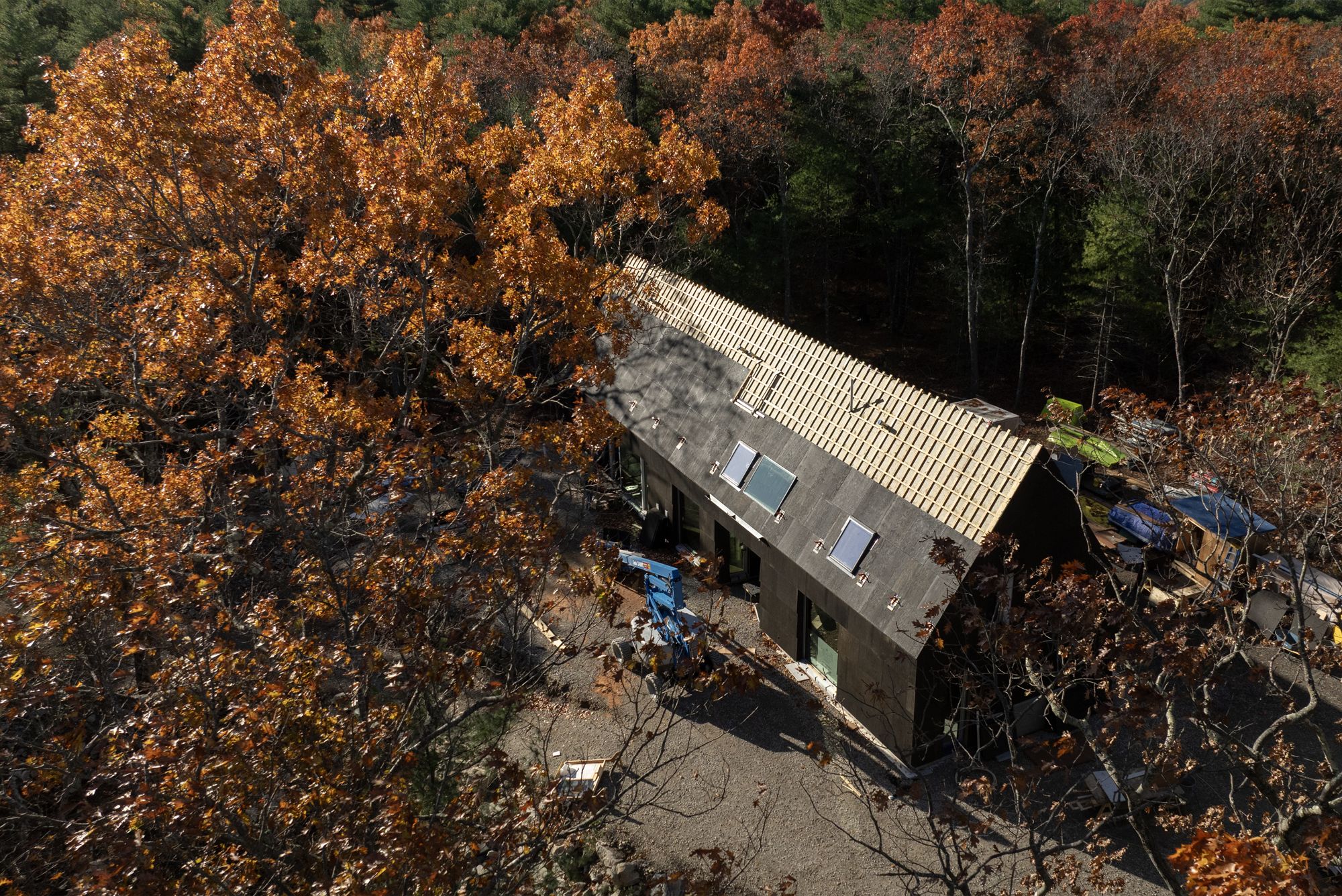

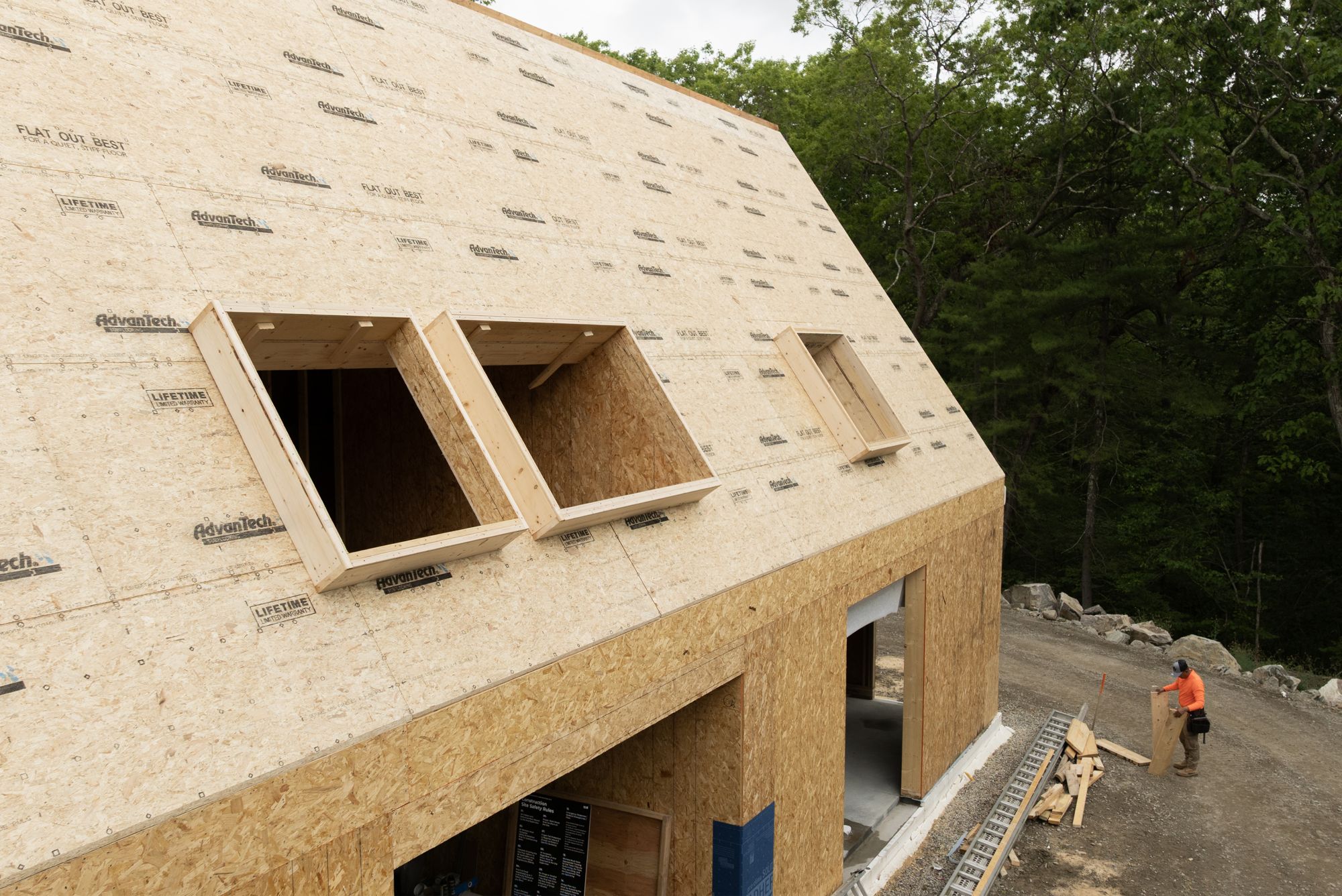

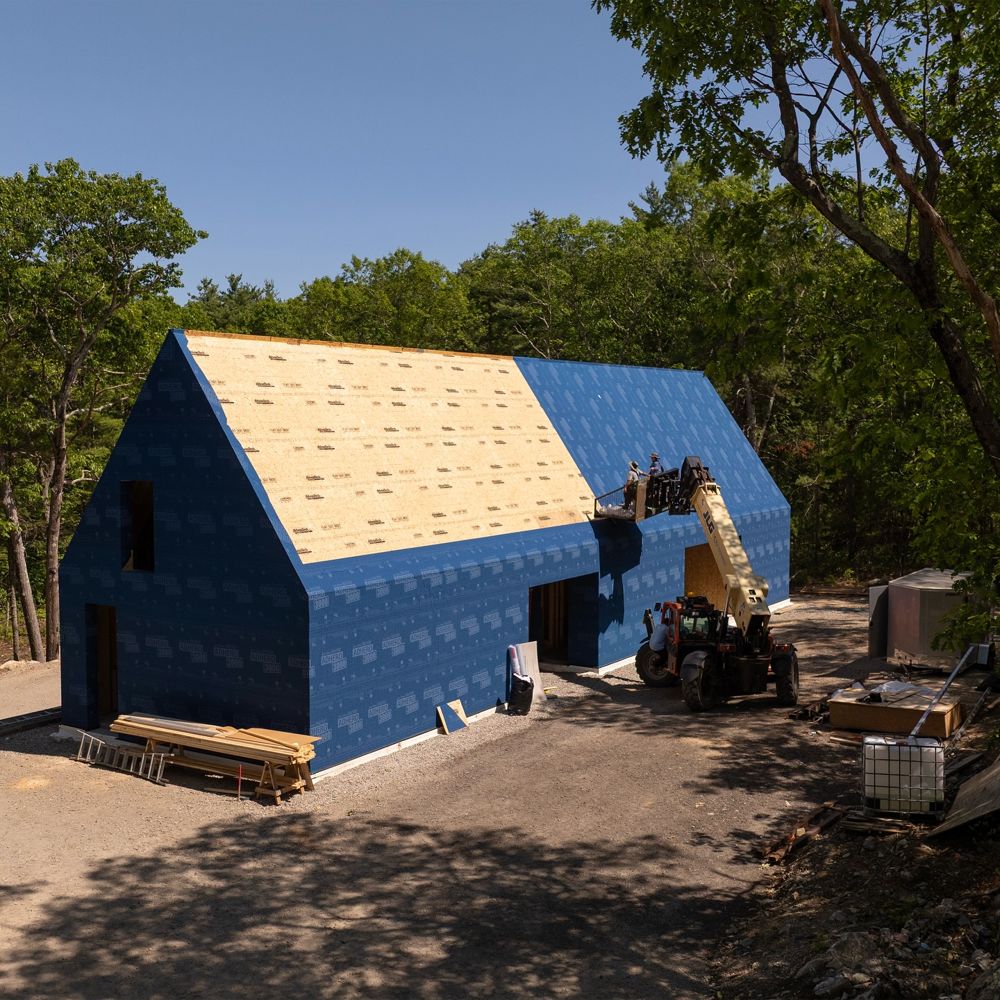

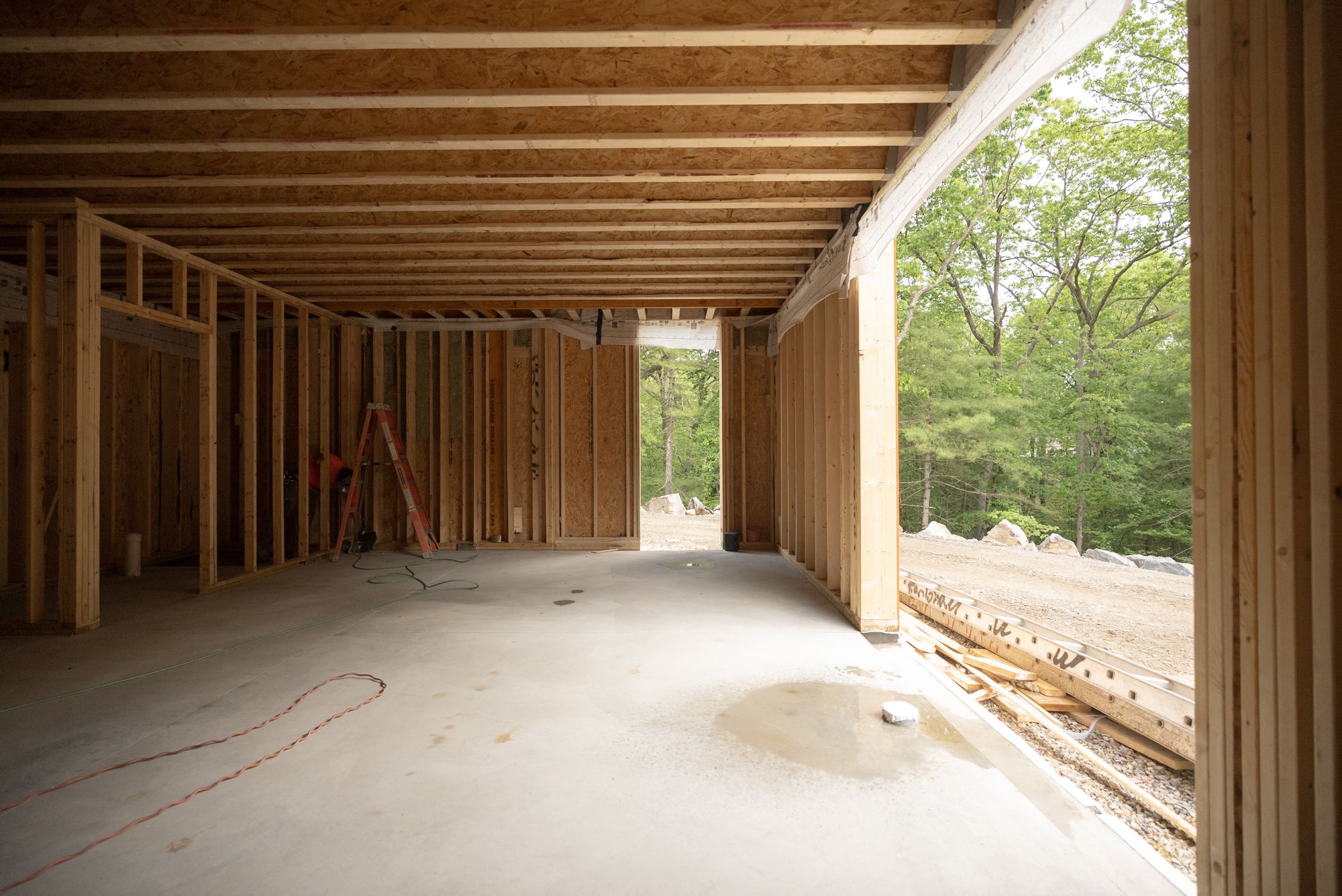

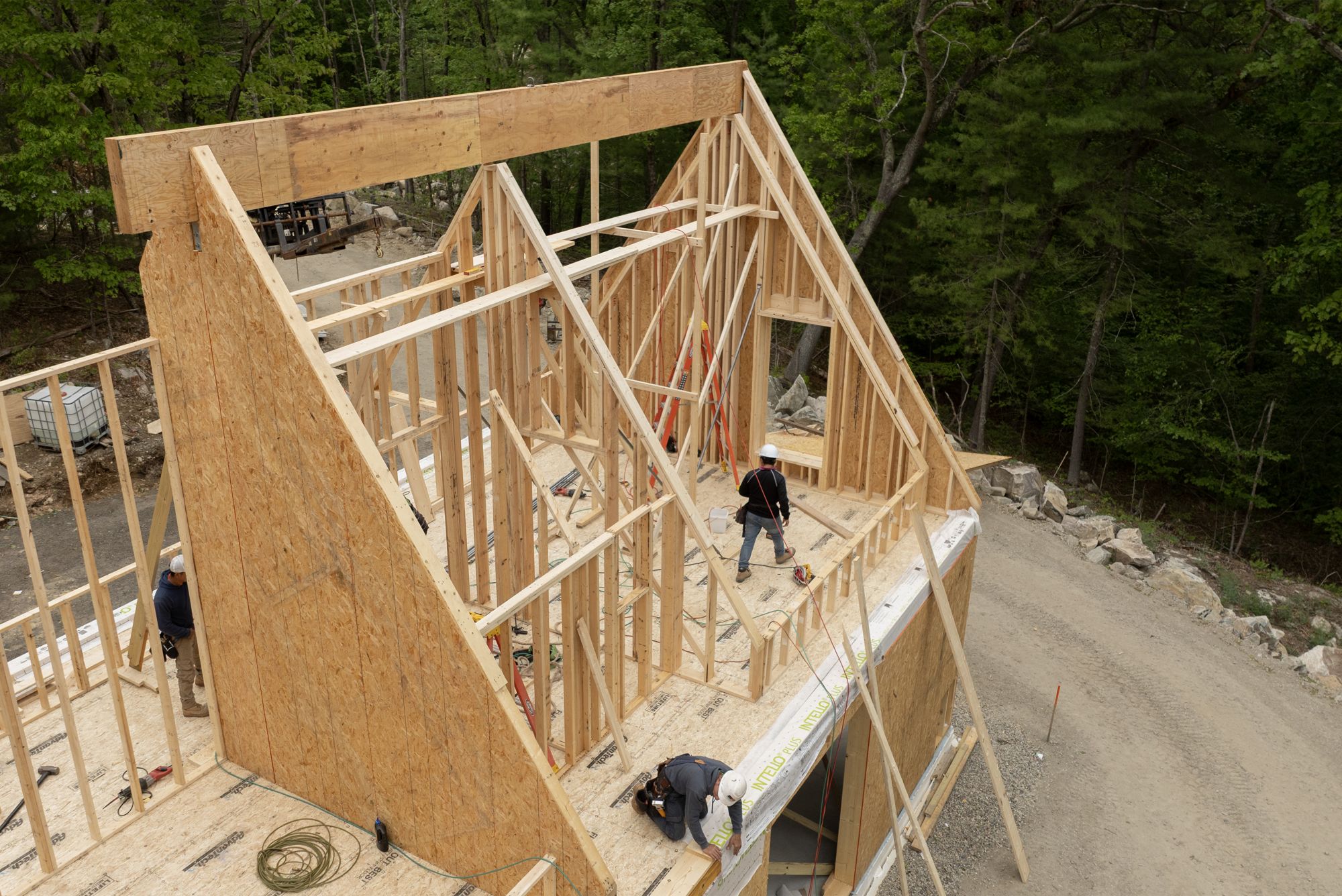

The house shape appears: walls and gable framed above the slab.
Photo by Motif Media

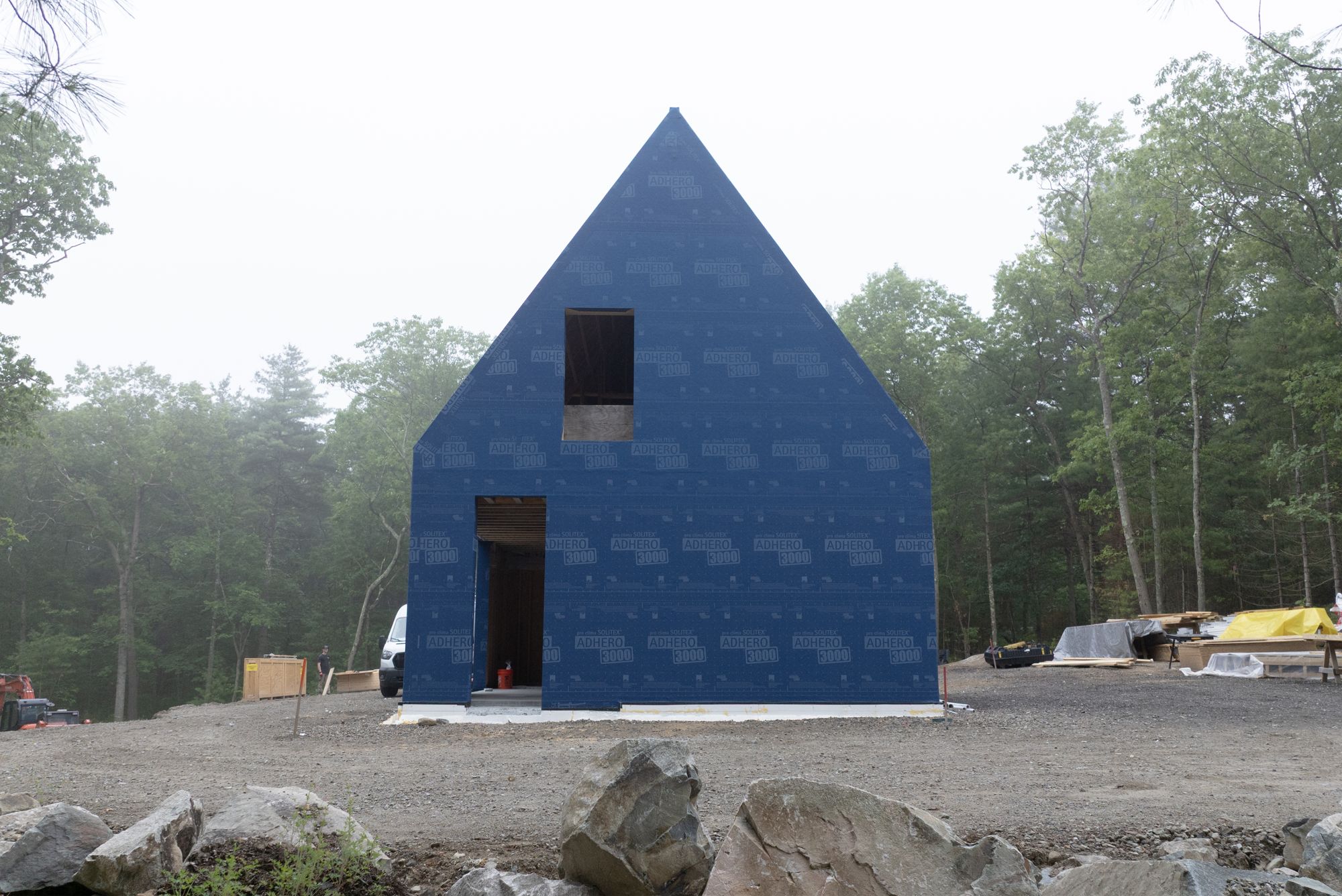

With John Deans of 475 Supply: mineral wool board outside the walls and over the roof, to reduce thermal bridging through the framing.
Photo by Motif Media

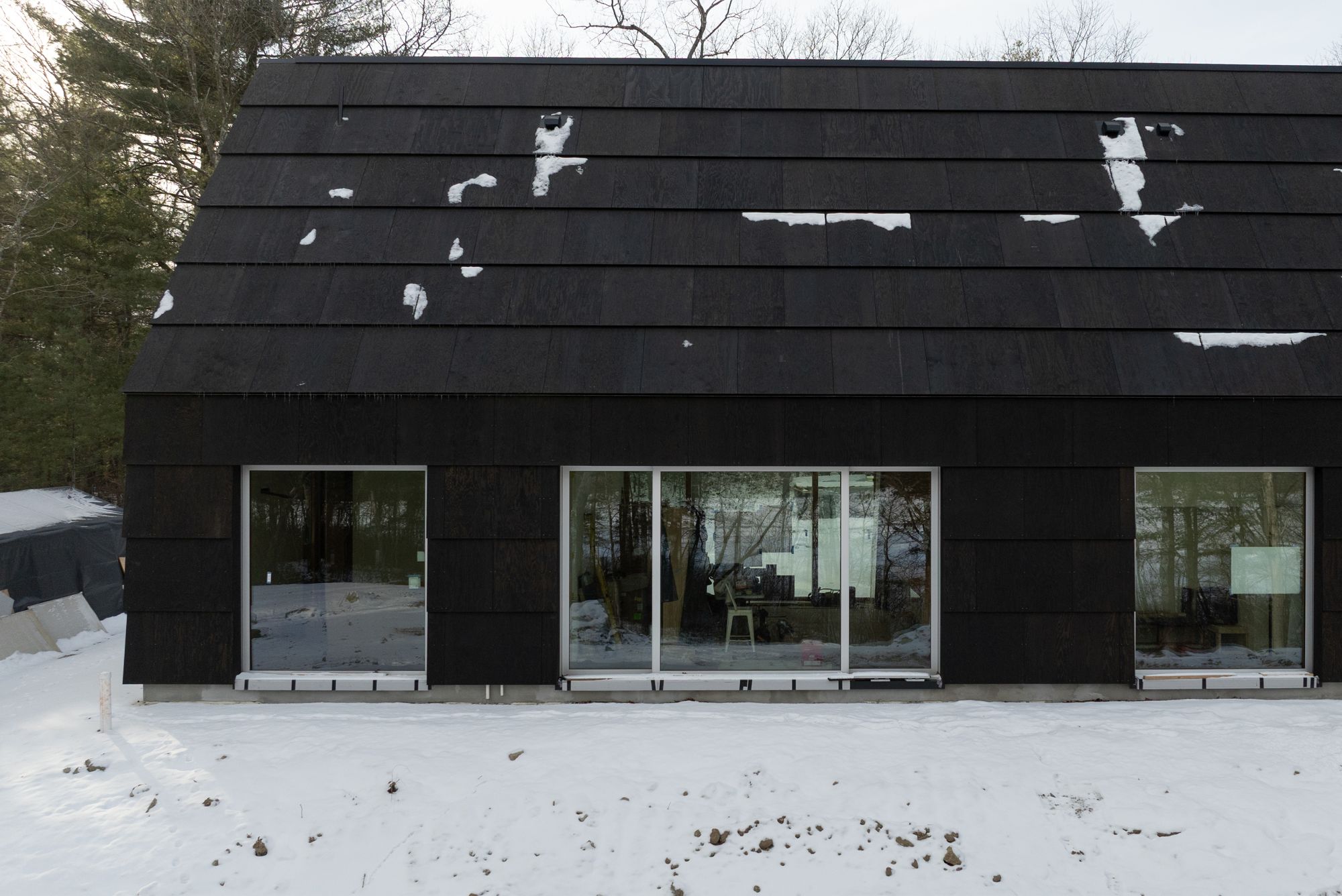

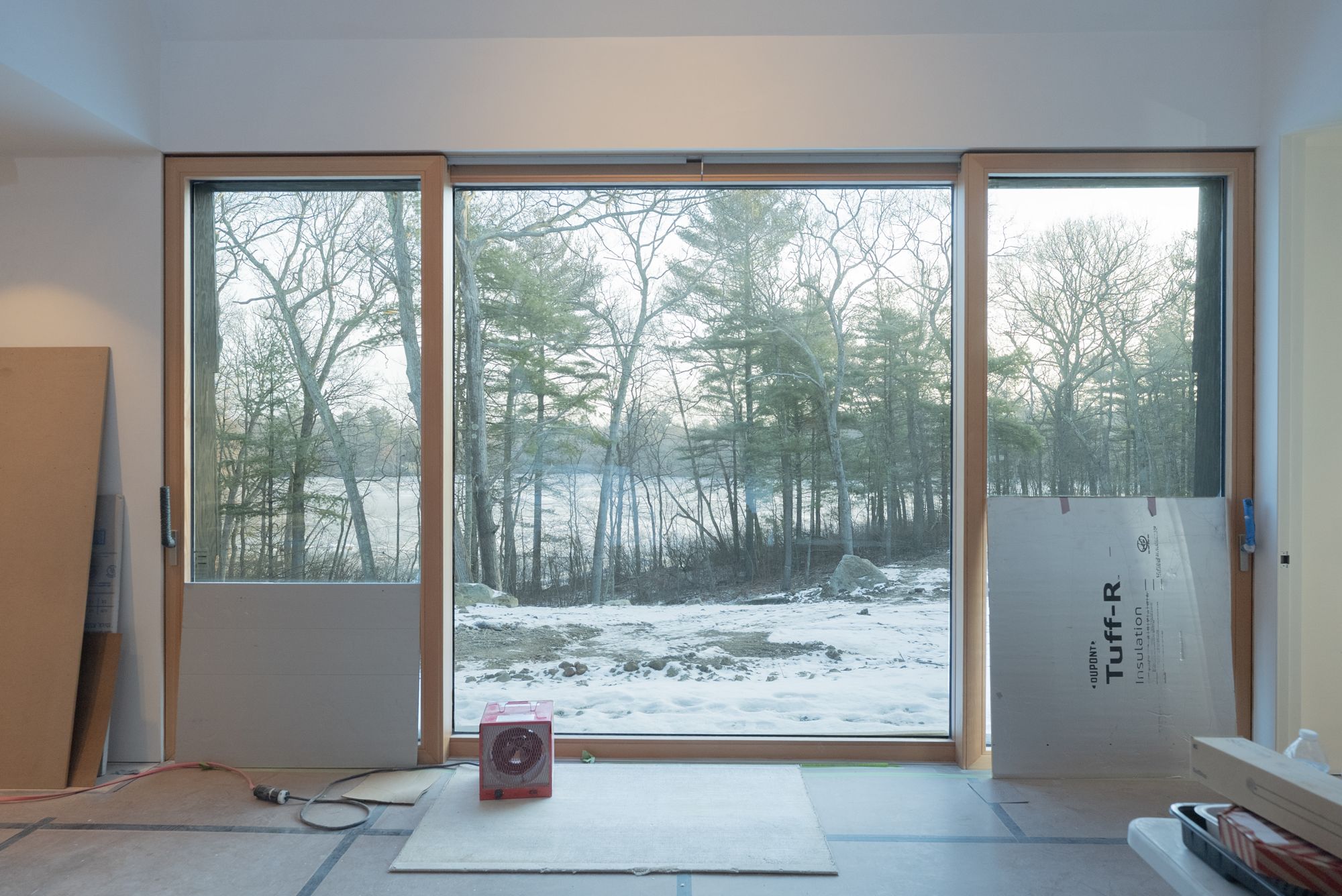

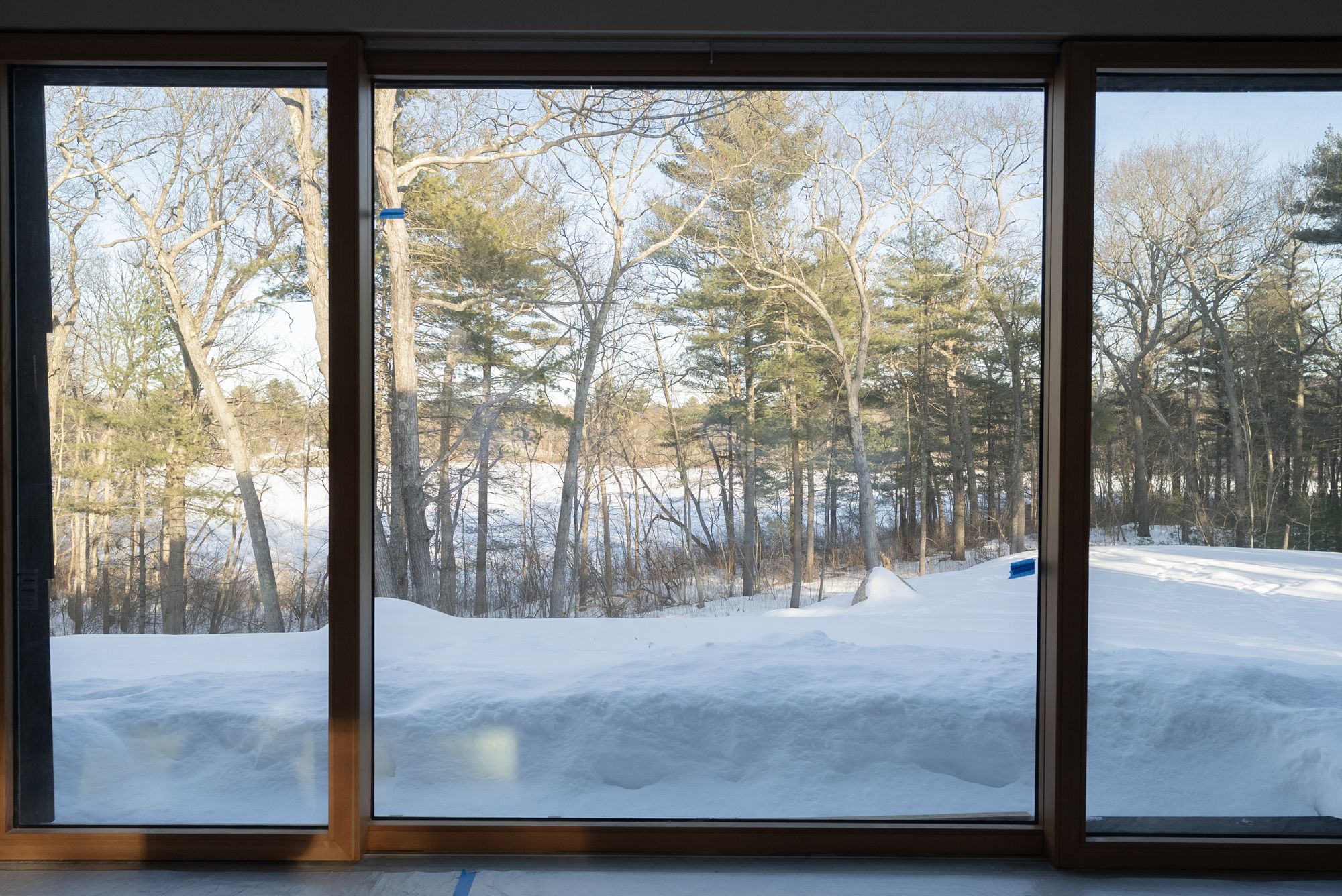

Nine-foot lift-slide units, made as doors, are set as operable windows so the first floor looks to the pond from floor to ceiling.
Photo by Motif Media
Setting the lift-slide units into the slab: the recessed pocket, the tracks, and tolerances under an eighth of an inch.
Photo by Motif Media

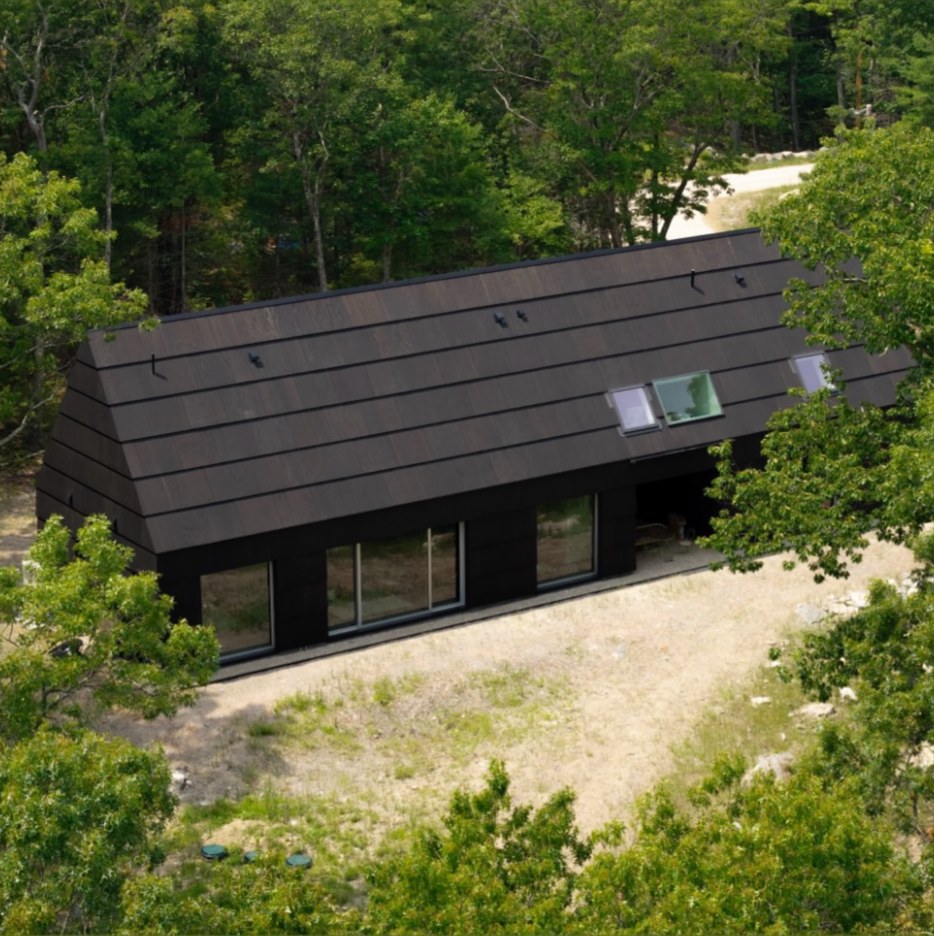

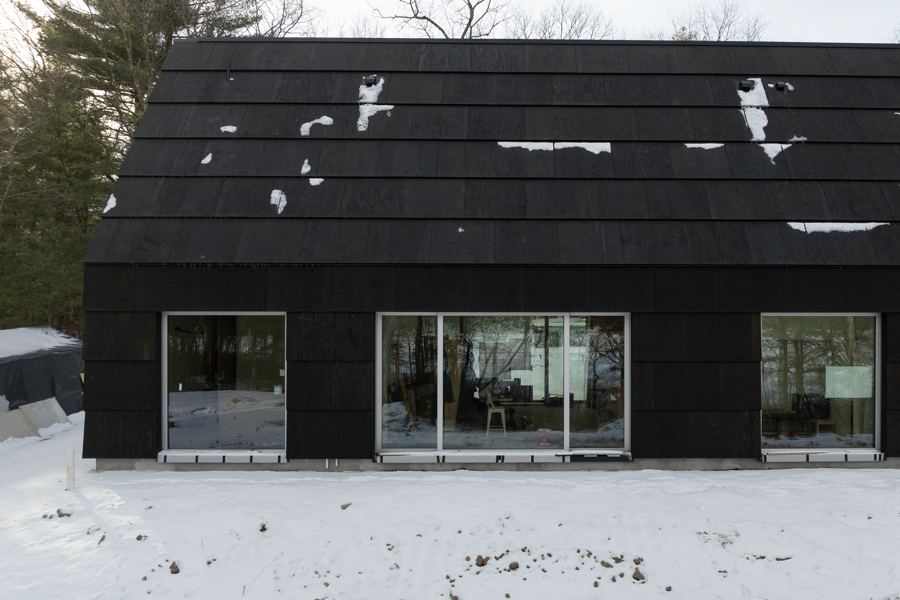

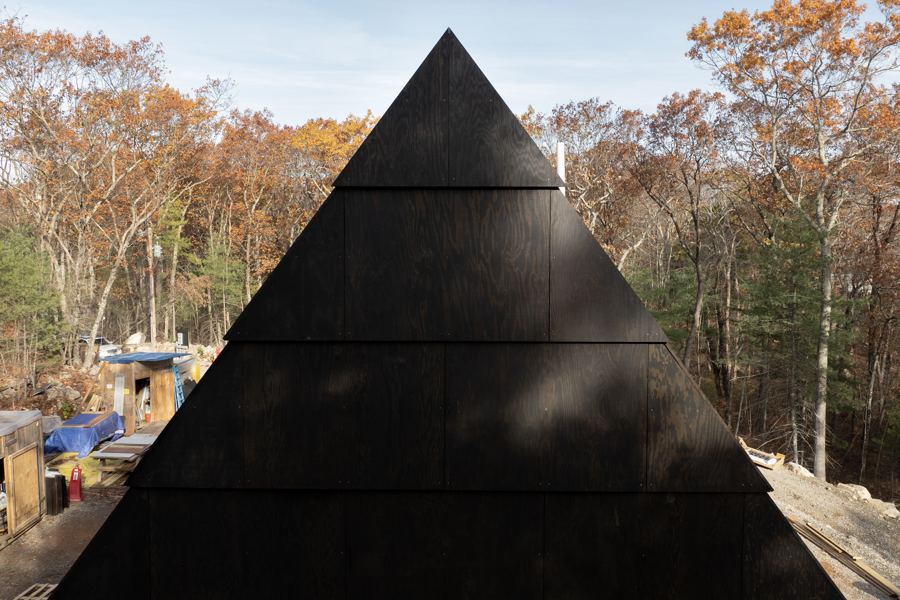

Nick Schiffer and superintendent Marc Murray walk builder Mark Williams through the house as it nears completion: the pine-tarred shingle and its eighth-inch seams, the drip edge and stone base, the lift-slide glass and polished slab.
Photo by Motif Media
Also from NS Builders:
Photos by Motif Media

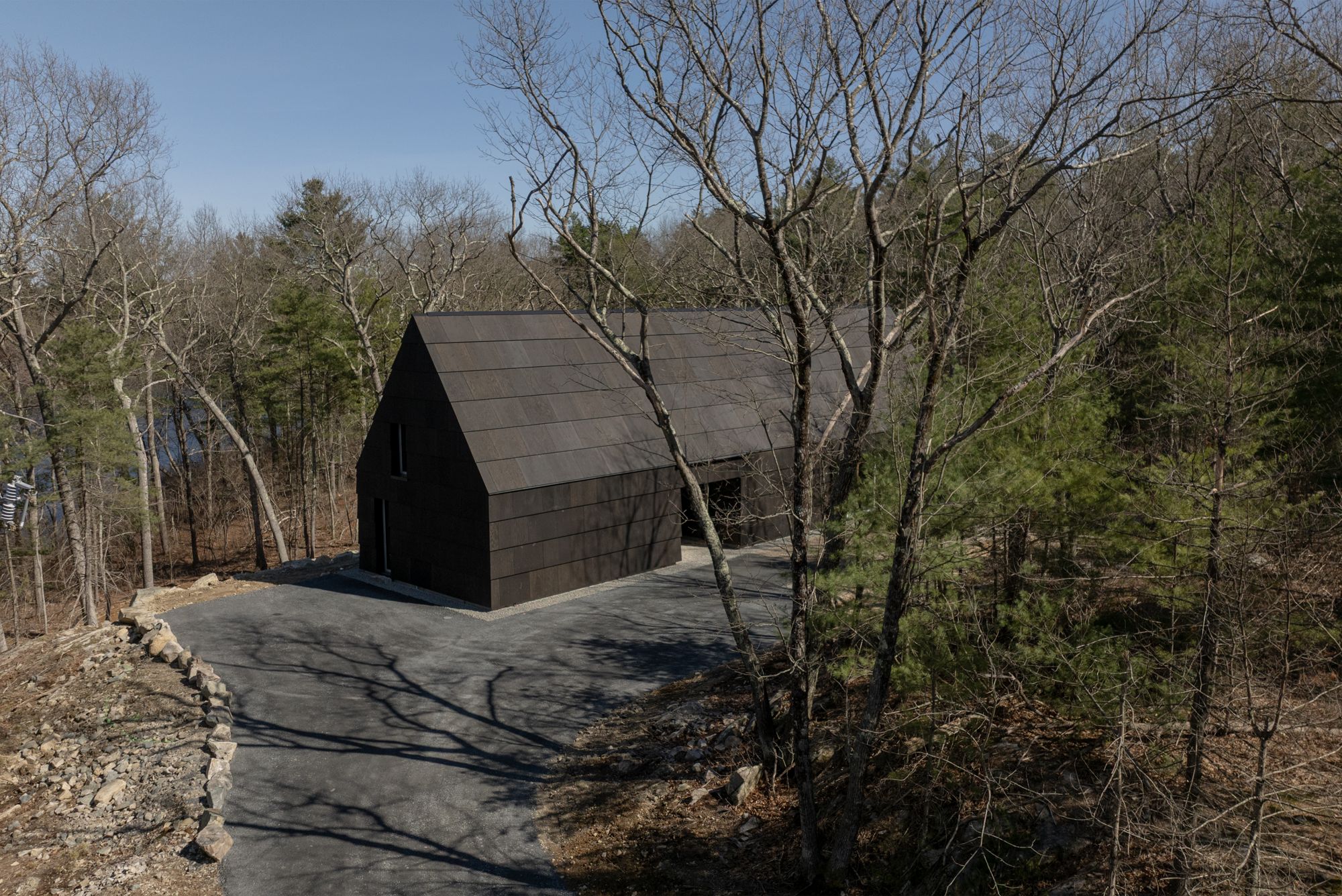

House-Shaped House
Photographs by Motif Media.
Photographs by Motif Media.

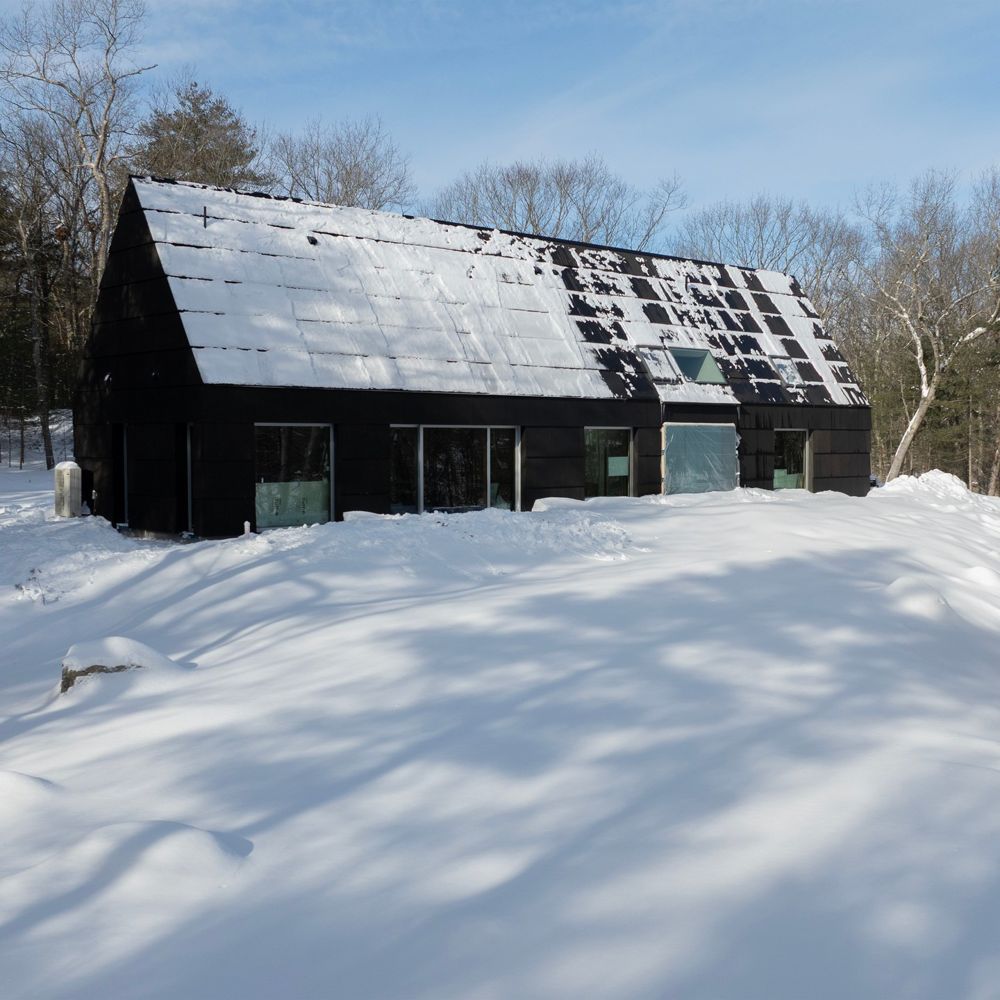

From Instagram
Nature
Footage by the owners
History
In the early twentieth century the pond was Glen Echo Park, a summer resort that day visitors reached by trolley. Penny postcards from those years show the pines and water the house looks onto today.
